SuperPro 6100N
SuperPro 6100N
Ultra-Fast Universal IC Programmer - 144 Pin Driver
- 104,000+ devices supported from nearly 400 IC manufacturers
- Operates in PC hosted and stand-alone modes
- Supports devices including EEPROM, MCU, and others
- USB interfaced ultra-fast 144 pin stand-alone universal programmer
- Great for reworks, master chip duplication, and chip testing
- Socket adapters are sold separately.
Ultra-High Speed Stand-Alone Universal Device Programmer
With One of the Industry's Broadest Device Support Libraries
SuperPro 6100N is a cost-effective, reliable, and high-speed universal IC programmer designed for electronics repair, engineering labs, and low-volume production environments. Built with 144 universal pin drivers, it delivers exceptional device coverage while maintaining fast and stable programming performance.
The system connects via USB 2.0 for PC-hosted development work and can also operate in stand-alone mode (no PC required) for flexible production or field use. Its broad device library and robust signal integrity make the SuperPro 6100N an ideal solution for applications that require dependable support across a wide range of memory and MCU devices.
Key Applications
The SuperPro 6100N is particularly well suited for:
Electronics Repair and Service
- TV and consumer electronics repair
- Motherboard and BIOS programming
- Router and networking firmware recovery
- General SPI Flash and EEPROM programming
Engineering Labs and Education
- University and classroom environments
- Prototype development
- Firmware validation and testing
- Device qualification
Automotive Electronics Repair
- ECU and module repair
- EEPROM and Flash reprogramming
- Dashboard and control module service
Light Production and Programming Houses
- Master IC duplication
- Low-volume production
- Rework and service centers
Medical and Industrial Electronics
- Embedded memory updates
- Device maintenance and repair
- Broad device support requirements
For advanced NAND, eMMC, and intensive data recovery workflows, customers may benefit from enhanced capabilities of the SuperPro 7500N. The SuperPro 6100N is optimized as a best-value universal programmer for electronics repair, engineering labs and broad device support applications.

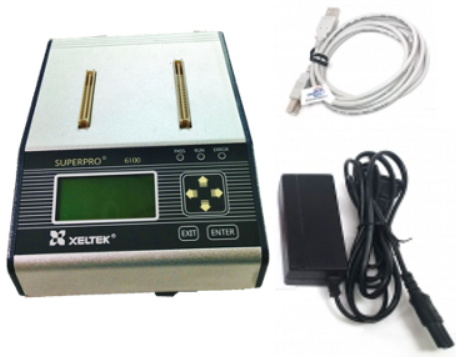

SuperPro 6100N comes with
- AC Adapter
- USB Cable
- Quick Start Guide
Optional Accessories
- Socket Adapters in various packages
- CF Card for stand-alone operation
- ISP Header for serial programming
Largest Device Support Library
Supports 104,000+ devices with continuous updates through close partnerships with major IC manufacturers.
Key Features
Project File Management
Save and restore complete programming setups, including device type, buffer data, configuration bits, operation settings, and batch commands. Password protection ensures secure and consistent operation.
Automated Production Sequencing
Automatically executes erase, blank check, program, verify, and protect in a seamless sequence - ensuring repeatable, error-free processing.
Production Mode
Instant start upon device insertion with automatic chip detection and batch execution - maximizing throughput and efficiency.
Factory Mode
Designed for high-volume manufacturing. Enforces Auto operation with administrator password control to prevent errors and unauthorized changes.
Traceability and Production Logging
Comprehensive log files support quality control, traceability, and process tracking.
Automatic File Recognition
Supports and auto-detects major industry formats including Binary, Intel Hex (linear/segmented), Motorola S, Tektronix, JEDEC, POF, and more.
Auto Serial Number Generation
Built-in auto-increment function programs unique electronic serial numbers for secure device identification.
Intellectual Property Protection
Password security available in both PC and stand-alone modes to safeguard data and process integrity.
Hardware and Electrical Specifications
Device Supported
EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR), BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU
Package types supported
DIP, SDIP, PLCC, JLCC, PGA, LGA, SOIC, SOJ, SOT, QFP, TQFP, PQFP, VQFP, MQFP, LQFP, TSOP, SOP, TSOPII, PSOP, SSOP, TSSOP, SON, EBGA, FBGA, FTBGA, VFBGA, μBGA, CSP, SCSP, QFN, HVQFN etc.
PC interface
USB 2.0 Windows: 8, 9, 10, 11 | 32/64Bits
Stand-alone memory
Compact FLASH Card
Power supply
AC Adapter: Input AC 100V- 240V; Output: 12V/1.5A
Dimensions
Main unit: 148(L) x 216(W) x 94(H) mm
Package: 301(L) x 252(W) x 145(H) mm
Weight
Main unit: Weight 3.5 lbs (1.6 Kg)
Package: Weight 6.2 lbs (2.8Kg)
Expanded Features
- Operate multiple units to construct a concurrent multi-programming system. Cluster 1-15 units for flexible volume production.
- Support devices with Vcc from 1.2V - 5V.
- Support files up to 256 GB
- Over-current and over-voltage protection for safety of the chip and programmer hardware
- Only IC manufacturer approved programming algorithms used for high reliability.

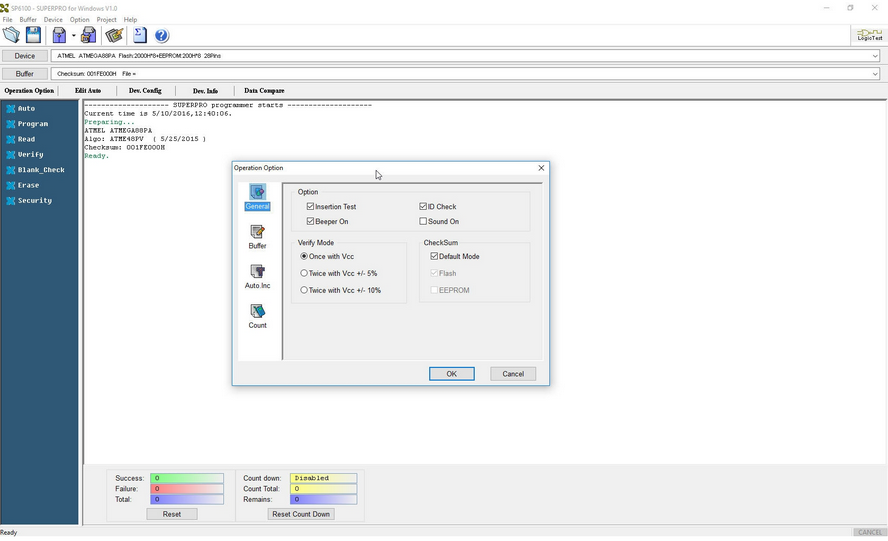

- Vcc verification (at +5% ~ 5% and +10% ~ 10%) enhances programming reliability.
For high density chip programming (eMMC & NAND) please refer to SuperPro 7500N .
