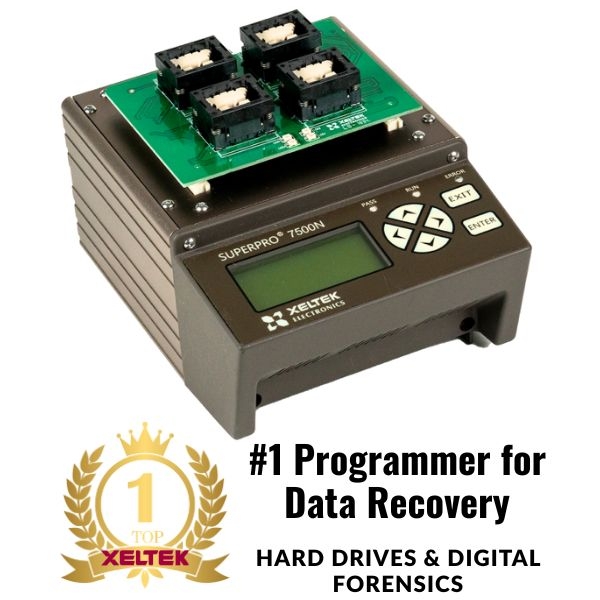

SuperPro 7500N
SuperPro 7500N
#1 Programmer for Data Recovery - Hard Drives and Digital Forensics
- Advanced Universal LAN Programmer - 144 Pin Driver
- Algorithms engineered to program up to 4 chips simultaneously
- Supports most device memories on the market
- Programs eMMC devices up to 64 GB
- Supports most package types including WLCSP
- Operates in PC hosted, stand-alone, and LAN modes
- Customized device algorithm development available
- Socket adapters are sold separately
- Trusted by Data Recovery Labs Worldwide
Meet the new standard in universal IC programming. The SuperPro 7500N is a high-performance, stand-alone universal programmer engineered for flexibility, speed, and production efficiency.
Its ultra-powerful system engine lets you program a single device or up to four devices simultaneously. By inserting a compatible 4-socket adapter, the SuperPro 7500N becomes a true 4Gang programmer—delivering gang-programming productivity without the cost of a separate gang system.
The SuperPro 7500N is also the proven programming platform used inside Xeltek SuperBOT IC programming system lineup—this same SP7500N programmer powers the SuperBOT, helping ensure consistent device support, accuracy, and repeatable results across both manual and automated workflows.
Beyond production, the SuperPro 7500N is an excellent solution for data recovery and hard drive repair applications thanks to robust support for eMMC and NAND flash devices. It is well suited for data recovery labs, repair centers, and forensic teams working with embedded memory.
The SuperPro 7500N can perform a hard copy of NAND flash devices, allowing quick duplication for recovery workflows. It can also read a wide range of memory devices, making it a reliable tool for obtaining master data.
This modular approach delivers professional gang programming performance while saving thousands in equipment costs—ideal for engineering, service, data recovery, and production environments.

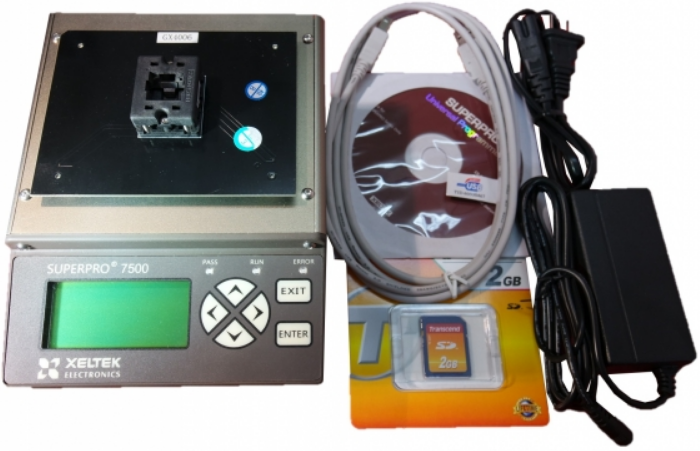

SuperPro 7500N comes with
- AC Adapter
- USB Cable
- SD Card
- Quick Start Guide
Optional Accessories
- Socket Adapters in various packages
Key Features
Project File Management
Save and restore complete programming setups, including device type, buffer data, configuration bits, operation settings, and batch commands. Password protection ensures secure and consistent operation
Automated Production Sequencing
Automatically executes erase, blank check, program, verify, and protect in a seamless sequence - ensuring repeatable, error-free processing
Production Mode
Instant start upon device insertion with automatic chip detection and batch execution - maximizing throughput and efficiency
Factory Mode
Designed for high-volume manufacturing. Enforces Auto operation with administrator password control to prevent errors and unauthorized changes
Traceability and Production Logging
Comprehensive log files support quality control, traceability, and process tracking.
Automatic File Recognition
Supports and auto-detects major industry formats including Binary, Intel Hex linear/segmented, Motorola S, Tektronix, JEDEC, POF, and more.
Auto Serial Number Generation
Built-in auto-increment function programs unique electronic serial numbers for secure device identification
Intellectual Property Protection
Password security available in both PC and stand-alone modes to safeguard data and process integrity.
Hardware and Electrical Specifications
Device Supported
EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR), BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU
Package types supported
DIP, SDIP, PLCC, JLCC, PGA, LGA, SOIC, SOJ, SOT, QFP, TQFP, PQFP, VQFP, MQFP, LQFP, TSOP, SOP, TSOPII, PSOP, SSOP, TSSOP, SON, EBGA, FBGA, FTBGA, VFBGA, μBGA, CSP, SCSP, QFN, HVQFN etc.

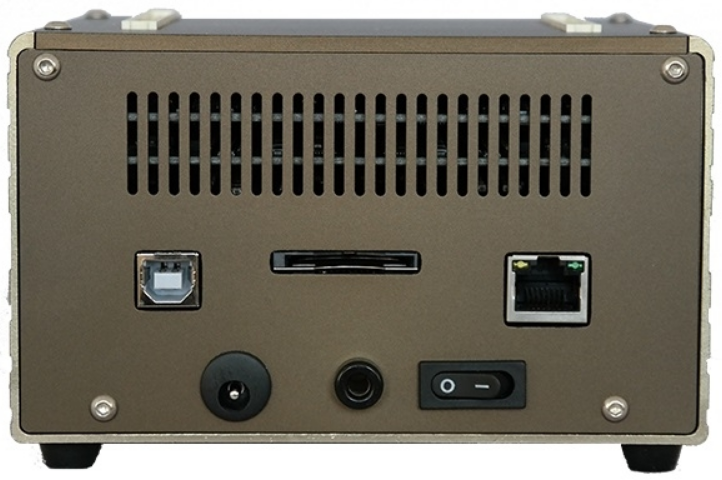

PC interface
USB 2.0, LAN
Stand-alone memory
SD Card
Power supply
AC Adapter: Input AC 100V- 240V; Output: 12V/1.5A
Dimensions
Main unit: 184(L) x 160(W) x 78(H) mm
Package: 310(L) x 250(W) x 145(H) mm
Weight
Main unit: Weight 1.80 lbs (0.80 kg)
Package: Weight 3.80 lbs (1.65 kg)
Expanded Features
- 144-pin Universal driver
- For standard NOR/NAND FLASH devices and serial EEPROM/FLASH
- Four chips can be programmed simultaneously (depends on device type and package).
- Over 59,000 devices are supported in the SuperPro 7500 library. Adapters do not need DIP lock sockets to transfer, resulting in more reliable connections.
- Powerful NAND FLASH platform library and exclusive solution for specific cases. Supports dozens of popular NAND FLASH platforms. Quick customization for specific requirements available.
- Built with 144 universal pin-driver. Universal adaptors are available for various packages.
- The ninth generation of pin-driver technology supplies cleaner signals, wider voltage range, more accurate and higher clock frequency, supports devices with Vcc from 1.2V to 5V.
- Chip security mechanism with built-in voltage self-correcting circuit to ensure the voltage is within a preset range.
- Over-current and over-voltage protection for chip and programmer hardware.

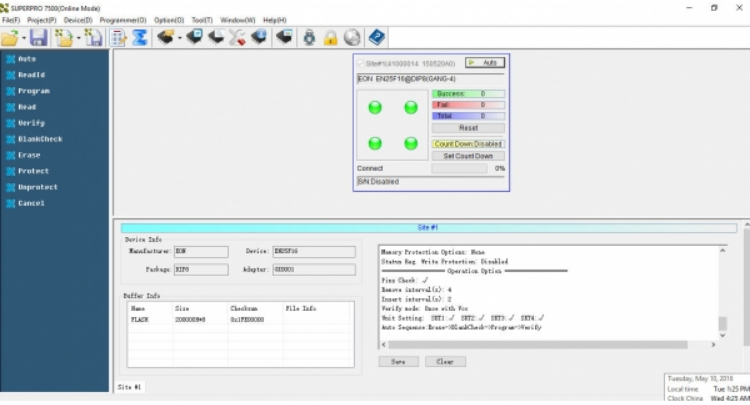

- Powerful, yet user-friendly software features streamline operations, improve efficiency, and reduce user mistakes during programming operations.
- Quick free technical and new device support
SuperPro 7500N for Digital Forensics and Data Recovery
In digital forensics and data recovery, access to raw chip data is often critical when conventional methods fail. Mobile phones, hard drives, SSDs, USB devices, embedded systems and damaged electronics may contain valuable information stored directly inside flash memory, EEPROM, eMMC, NAND, NOR, or microcontroller devices. When the original system is no longer functional, the ability to remove the chip and read its content directly becomes an essential part of the recovery process.
The SuperPro 7500N is a powerful universal IC programmer designed to support forensic chip reading and raw data retrieval. With support for over 146K+ devices and compatibility with more than 500+ socket adapters, it provides the flexibility needed to work with a wide range of package types and memory devices commonly found in forensic investigations.
Ideal for forensic labs, law enforcement, private investigations, cybersecurity teams, and data recovery specialists.
For forensic professionals, the process typically begins by identifying the chip part number, selecting the proper socket adapter, and using the programmer's Read function to extract the raw data file. That file can then be analyzed using the investigator's preferred forensic or recovery software. Because many forensic cases involve unknown or damaged electronics, having a universal programmer with broad device support is a major advantage.
Whether working with law enforcement, private investigations, data recovery labs, or cybersecurity teams, the SuperPro 7500N offers a dependable solution for direct chip access, raw data extraction, and digital evidence recovery.
