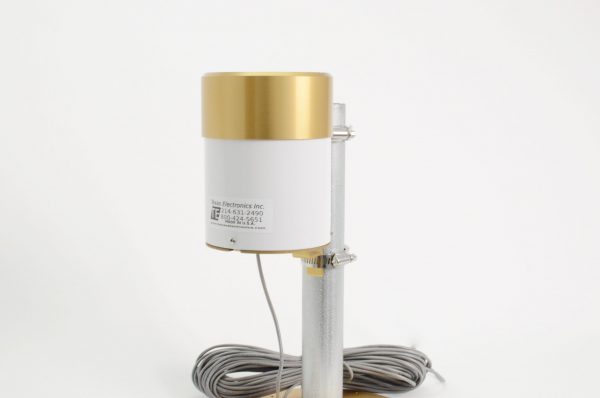

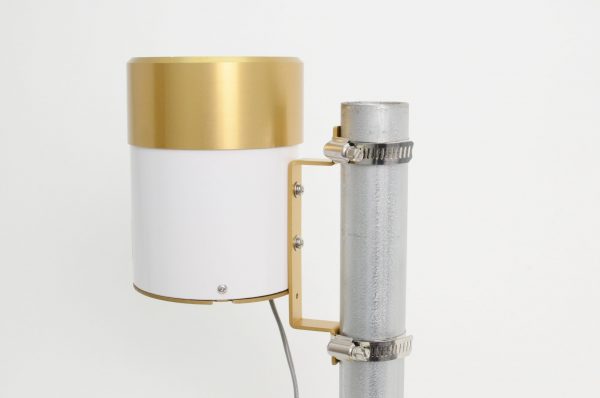

TR-4 Tipping Bucket Rain Gauge

Description

Texas Electronics TR-4 4" Tipping Bucket Rain Gauge low-cost rainfall sensor is a remote tipping bucket style rain gauge that measures liquid precipitation.

Texas Electronics Rain Gauge is a freestanding receptacle for measuring precipitation. Through an opening at the top of the device, rain is collected and then funneled to a mechanical device, called a tipping bucket. As water is collected, the tipping bucket fills to the point that it tips over, causing a momentary closure of a switch to incrementally measure rainfall accumulation. This action empties the bucket in preparation for additional measurement. Water discharged by the tipping bucket passes out of the rain gauge with no need for emptying.

TR-4 was designed to meet the need for a rugged and reliable rain gauge tipping bucket without the high accuracy of a research grade sensor, or the associated cost.

Specifications

Weight	2.000 lbs
Accuracy	0-1 in. (25 mm) per hour; +/-2%
Bounce Setting Time	0.75 ms
Cable	10', 22 Gauge 2 Conductor
Splash out Protection	>1.5" (38 mm)
Height	6" (152 mm)
Level	Integral Bubble Level
Pivot	Ground bronze pivots with hardened stainless steel shaft
Storage Temp	-40 to 160°F (-40 to 85°C)
Switch Closure Time	135 ms
Weight	2 lbs. (0.9 kg) 4 lbs. (1.8 kg)
Dimensions	9 x 6 x 6 in
Calibration Certificates	1 Calibration Certificate, 1 Calibration Certificate+1 Re-calibration Certificate, 1 Calibration Certificate+2 Re-calibration Certificates, 1 Calibration Certificate+3 Re-calibration Certificates, No Calibration Certificate
Bucket	Black ABS injection molded
Collector Diameter	3.90" (100 mm) with knife edge
Funnel Depth	3" (76 mm)
Humidity Limits	0 to 100%
Operating Temp	32 to 125°F (0 to 70°C)
Resolution	0.01" English
Switch	Momentary potted reed switch
Switch Rating	30 VDC @ 2A, 115 VAC @ 1A
Warranty	3 Years
