Weipu Connector (Professional Waterproof Connector)
Small size
Water tight-IP68
Weipu Connector
UL available for 3A & 5A
SP13 series is a mini-size IP68 waterproof connector, specially designed for applications that require space-saving and high water resistance.
- small size
- 2-9 contacts
- rated current: 3-13A
- gold plating pin
- IP68 after mated
- assembly available
- threaded coupling
- UL Certificated (4-9 pin)
Applications: This connector is designed for a space-consuming environment. The small dimension and high IP rating shell made it widely used in many areas, such as outdoor testing or measuring equipment, communications field, outdoor lighting, etc. Its strong industrial design enables it to support a lot of harsh and humid environments.

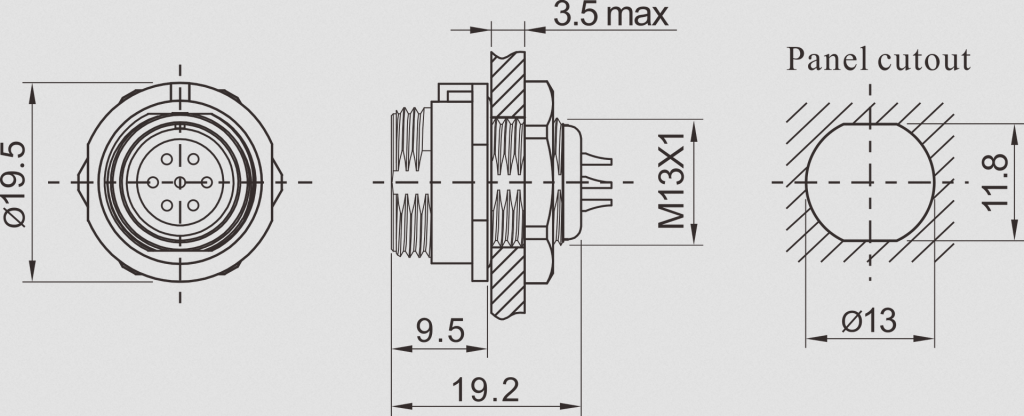

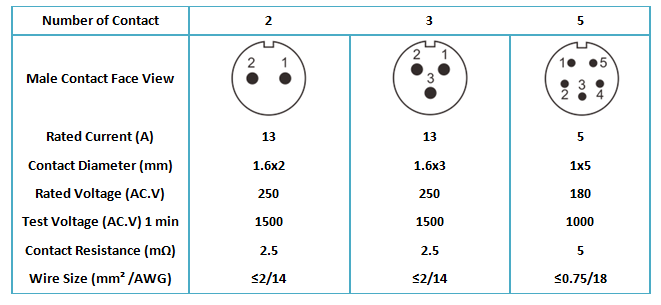

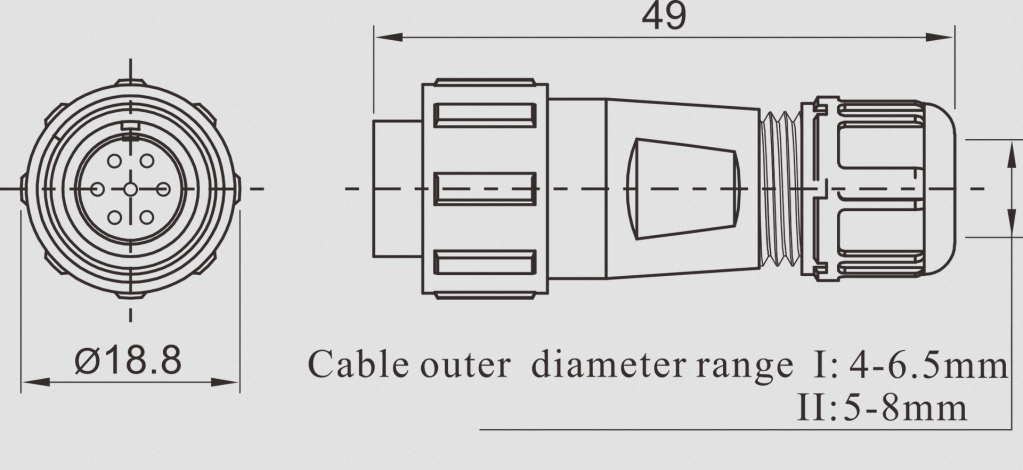

Spec and Faceview
SP1312
SP1310
Solder Spec
