USB Hub-13
Industrial-grade USB hub with 13 USB-C ports
Overview

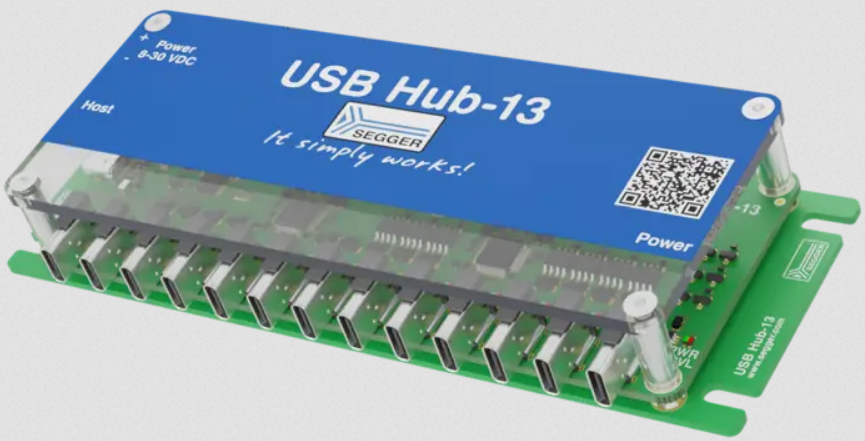

SEGGER's USB Hub-13 is a compact, industrial-grade USB hub featuring 13 downstream USB-C ports. It is ideal for connecting multiple Flasher Compact units to a Flasher Hub-4 or a Flasher Hub-12, providing reliable power and data connections for production environments.
The hub supports a wide input range of 8-30V, and its flexible design allows easy mounting. For applications with minimal space, the top plexiglass plate can be removed, further reducing its footprint without compromising performance.
Key Features
Upstream Port Isolation
The upstream port provides basic isolation (3kV DC for 1 second), protecting a host system from potential electrical disturbances
Overload Protection
Each downstream port includes an overload limit to safeguard connected devices and ensure reliable operation in industrial settings
Compact and Flexible Design
USB Hub-13 features a space saving form factor. Its removable top plexiglass plate allows installation in tight spaces while maintaining rugged performance
Use Case
Gang Programming
Gang programming is used to increase the throughput of a programming station. The SEGGER USB Hub-13 provides a tested USB hub to simply expand the number of available USB ports to connect up to 24 Flasher Compacts with a Flasher Hub-4 or Flasher Hub-12.
Technical Specifications
| Power Supply | 8-30 VDC, reverse polarity protected, max. 60 W [1] |
| Host Interface | USB-C 2.0 High Speed (Upstream), isolation 3.75 kV RMS (basic isolation)[2] |
| USB Flasher Interface | 13 × USB-C 2.0 High Speed (Downstream) |
| Operating Temperature | 5 °C … + 60 °C |
| Storage Temperature | 20 °C … + 65 °C |
| Relative Humidity (Non-Condensing) | < 90 % rH |
| Size (Without Cables) | 162 mm × 61 mm × 25 mm |
| Weight (Without Cables) | 125 g |
[1] Depends on current consumption of connected downstream devices. For maximum load, the input supply must be 12VDC or more.
[2] Safety Considerations: SEGGER USB Hub-13 provides basic isolation only and is not intended for use with hazardous voltage without additional protective measures to prevent the risk of electric shock or fire.
USB Hub-13's basic isolation can withstand high voltages, as specified in the relevant technical data section. To ensure user safety when working with potentially hazardous voltages, a secondary protective measure is mandatory in case the primary insulation barrier fails. This is known as double or reinforced insulation, and the method of achieving it depends on the specific use case or application setup.
Always consult local safety regulations to ensure that all applicable requirements are met.
