Migatron RPS-409A-IS3
RPS-409A-IS3
Intrinsically Safe
C-UL-US
Safe for use in Hazardous Area
Features
- Intrinsically Safe
- C-UL-US
- Premium Build
- 20+ Years Sensor Service Life
- Built to Last Full Equipment Life Cycle
- Stock Availability & Fast Delivery
- Sync/Tx Input Line
- Various Sensing Ranges
- Wide Temperature Range
- Temperature Compensation
- LED Indicator
- PVC Enclosure
- Analog Voltage Output
About the RPS-409A-IS3 Sensor
Migatron's RPS-409A-IS3 is an intrinsically safe analog ultrasonic sensor available in a variety of ranges. The RPS-409A-IS3 sensors can be used in hazardous gas or dust environments classified as Class I, II, or III when used with approved intrinsic safety barrier(s).
The sensor is self-contained in a 30mm barrel style enclosure, and is powered by 16 – 30 V dc with reverse polarity protection. Migatron's RPS-409A-IS3 has a short circuit protected 0 – 10 V dc analog output. The analog voltage is a fixed volts per inch based on the maximum range of the unit. For example, when using the RPS-409A-80-IS3, the output is a linear 0.125 V per inch. A target placed 10 inches from the sensor will result in an output of 1.25 V, and a target placed 80 inches from the sensor will result in an output of 10 V.
Migatron's RPS-409A-IS3 has built-in temperature compensation to provide accurate readings throughout the entire operating temperature range. An LED indicator is provided. The LED is green with no target detected and changes to red when a target is detected. The sensor is completely sealed and connection must be made with a cable having a rating of IP67 or greater.
In addition to the analog output line the sensor also has a Sync/Tx line. This line can be used for connecting multiple sensors together (Sync) to prevent cross talk, or (Tx) to control when the sensor transmits.
Migatron's RPS-409A-IS3 is designed to take advantage of today’s PLC and computer analog input cards. The numerical values that are programmed into the PLC or computer will determine the zero and span of the sensor.
Specifications
| Enclosure Material | Polyvinyl Chloride (PVC) Enclosure with PVC sensing face |
| Ambient Temperature | -40 to +60°C or -40 to +140°F |
| Input Current | 24mA maximum with 24VDC applied to the safety barrier |
| Humidity | 0 – 95% Non-Condensing |
| Power Input | 16 – 30VDC Reverse Polarity Protected (Note: A minimum of 24VDC must be applied to the safety barrier) |
| Output | Analog Voltage Output 0 – 10V (Load 100k Ohms to infinity) Short Circuit Protected |
| Entity Parameters | See Control Drawing No. 14122606 |

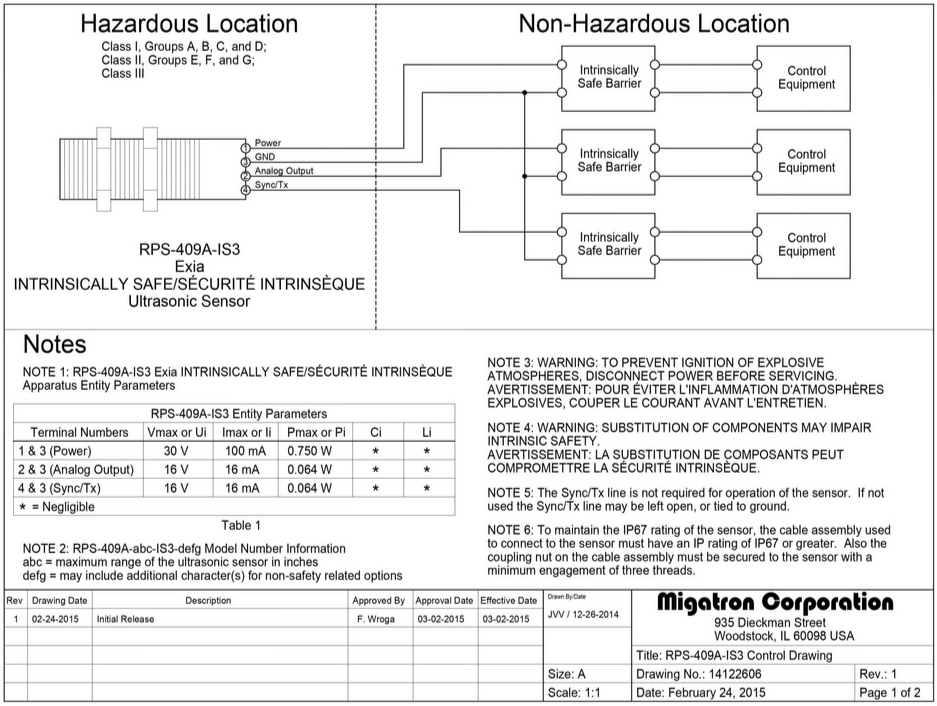

Control Drawing No. 14122606
| Model Number | Sensor Range | Transducer Frequency | Response Time | Volts Per Inch |
|---|---|---|---|---|
| RPS-409A-40-IS3 | 4 – 40″ | 175kHz | 85ms | 0.250V |
| RPS-409A-80-IS3 | 6 – 80″ | 135kHz | 85ms | 0.125V |
| RPS-409A-144-IS3 | 10 – 144″ | 70kHz | 175ms | 0.069V |
| RPS-409A-216-IS3 | 12 – 216″ | 70kHz | 175ms | 0.046V |
Explosion Protection and Approvals
| Canada and USA (C-UL-US) |
|---|
| UL/cUL File # E226209 |
| Certificate Number: 20150302-E226209 |
| Class I, Groups A, B, C and D |
| Class II, Groups E, F and G, and |
| Class III hazardous locations. |
Ordering Information
| Part Number | Range | Description |
|---|---|---|
| RPS-409A-40-IS3 | 4″ to 40″ | 0-10VDC Analog Output |
| RPS-409A-80-IS3 | 6″ to 80″ | 0-10VDC Analog Output |
| RPS-409A-144-IS3 | 10 – 144″ | 0-10VDC Analog Output |
| RPS-409A-216-IS3 | 12 – 216″ | 0-10VDC Analog Output |
| F32-5496302 | 2 Meter Cable, M12, 4-PIN, IP67, 18 AWG – Sold Separately | |
| F32-5496305 | 5 Meter Cable, M12, 4-PIN, IP67, 18 AWG – Sold Separately | |
| F32-5496318 | 6 Meter Cable, M12, 4-PIN, IP67, 18 AWG – Sold Separately | |
| F50-9240905 | ZSB-409A Safety Barrier – Sold Separately | |
| F33-5441504 | DIN Rail Grounding Block – Sold Separately | |
| PD6000 | Digital Meter with 4 Relays |
