Ixxat CAN-CR220 (4 kV AC)
CAN repeater with 4 kV DC/ 4 kV AC galvanic isolation
Ixxat CAN-CR220
Item Number: 1.01.0067.44300
Ixxat CAN-CR220 repeater with two CAN interfaces provides a galvanic isolation up to 4 kV DC/ 4 kV AC for 1 second, enhancing the protection of network segments. It improves the CAN bus load capacity, establishes a physical coupling of bus systems and provides the flexibility to optimize network structures. The CAN-CR220 meets DIN/ EN 50178 standards.
Application Sample
CAN repeaters can be used to better adapt the cable routing to the ambient conditions. Stub lines can be made and the bus structure can be expanded to a star/ tree structure, which saves cable lengths. Shorter cable lengths reduce interference on the signal lines and enable higher bit rates. Segments connected via repeaters are galvanically decoupled and therefore offer overvoltage for connected participants.
Features and benefits
Robust Industrial Use
Designed for industrial environments, meeting high demands for robustness, temperature ranges, and safety.
Flexibility in CAN Network Design
Helps to optimize CAN network structures by enabling extended layouts (stub lines, star and tree topologies).
Fast and Transparent Operation
Minimal impact on real-time behavior, equivalent to a short line length (ca. 40 m/ 200 ns delay). Enabling transparent transmission, compatible with higher layer protocols.
Cost Savings Due to Simple Wiring
Optimized topologies enable simpler wiring, resulting in less cables and cost savings at installation and maintenance.
Increased System Protection up to 4 kV DC/ 4 kV AC for 1 Second
Using the CAN-CR220, network components can be galvanically isolated up to 4 kV DC/ 4 kV AC for 1 second (4 kV DC/ 3.75 kV AC for 1 minute). This reliably enhances the protection of the device against damage to electronics caused by voltage peaks.
Network Monitoring and Fault Recovery
In case of disturbances, the repeater automatically disconnects the affected segment and restores it after the fault is resolved.
Integrated Bus Termination Resistors
Integrated bus termination resistors (120 Ohm, switchable via DIP switch) prevent reflections on the line ends and ensure optimum communication.
Technical Specifications
| General | |
| Content of Delivery | CAN repeater, user manual |
| Net Width (mm) | 100 mm |
| Net Height (mm) | 118 mm |
| Net Depth (mm) | 22.5 mm |
| Net Weight (g) | 200 g |
| Packed Width (mm) | 13 mm |
| Packed Height (mm) | 4 mm |
| Packed Depth (mm) | 17 mm |
| Packed Weight (g) | 283 g |
| Mounting | DIN rail mount (bracket included) |
| Current Consumption Type Value at Vcc Nom (mA) | 41 |
| Current Consumption Max value at Vcc nom (mA) | 100 |
| Input Voltage (V) | +9 V to +32 V DC |
| Isolation | 4 kV DC/4 kV AC for 1 sec., 4 kV DC/3.75 kV AC for 1 min., 3 kV AC for 3 min. |
| Operating Temperature °C Min | -20 °C |
| Operating Temperature °C Max | 70 °C |
| Storage Temperature °C Min | -40 °C |
| Storage Temperature °C Max | 85 °C |
| Relative Humidity | 10 to 95 %, non-condensing |
| Housing Materials | Polyamide housing for top hat rail mounting |
| Packaging Material | Cardboard |
| Warranty (years) | 1 |
| Identification & Status | |
| Item Number | 1.01.0067.44300 |
| Export Control Classification Number (ECCN) | EAR99 |
| Dual Usage | No |
| Country of Origin | Germany |
| Brand | Ixxat |
| HS Code | 8517620000 |
| Successor | 1.01.0211.20000 |
| Certifications & Standards | |
| CE | Yes |
| FCC | Yes |
| WEEE Category | IT and telecommunications equipment |
| Protection Class IP | IP30 |
| ETIM Classification | EC000698 |
| CAN Features | |
| CAN Mode | CAN high-speed (ISO 11898-2) with CAN choke |
| CAN Baud Rate | Up to 1 Mbit/s |
| CAN Transceiver | TI SN65HVD251 |
| Physical Features | |

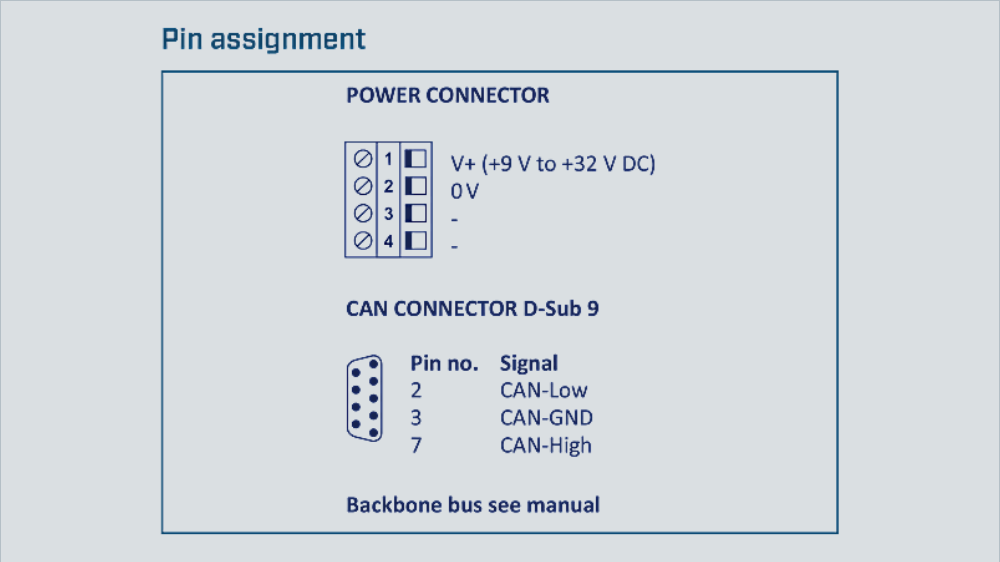

| Connectors / Input / Output | 2 x D-Sub 9 connectors, 1 x power connector |
| Contains Battery | No |
