Ixxat CAN-CR110/FO With Termination Resistors
CAN/ CAN FD repeater with fiber optics and termination resistor

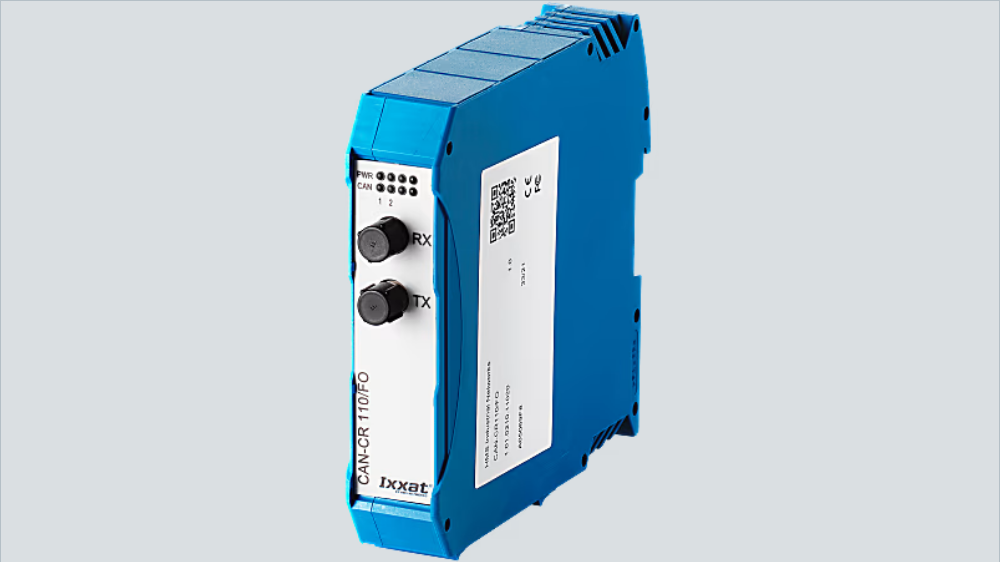

Ixxat CAN-CR110/FO
Item Number: 1.01.0210.11020
Ixxat CAN-CR110/FO repeater with two CAN/ CAN FD interfaces, one of which is a Fiber Optic interface, enables the conversion of CAN signals from copper wire to fiber optics. It enhances connectivity in high-electromagnetic interference zones and provides the flexibility to optimize network structures. With integrated termination resistors.
Application Sample
Fiber optic CAN FD repeaters enable the bridging of interference-intensive routes using optical lines. They enable complete galvanic decoupling of segments and offer high protection against overvoltage.
Features and benefits
Robust Industrial Use
Designed for industrial environments, meeting high demands for robustness, temperature ranges, and safety.
Flexibility in CAN FD Network Design
Helps to optimize CAN/ CAN FD network structures by enabling extended layouts (stub lines, star and tree topologies).
Fast and Transparent Operation
Minimal impact on real-time behavior, equivalent to a short line length (ca. 60 m/ 300 ns delay). Enabling transparent transmission, compatible with all higher layer protocols.
Cost Savings Due to Simple Wiring
Optimized topologies enable simpler wiring, resulting in less cables and cost savings at installation and maintenance.
Enhanced Network Reliability
Higher system reliability by electrically isolating CAN/ CAN FD segments and power up to 1 kV. This enhances the protection of the device against damage to electronics caused by voltage peaks.
Network Monitoring and Fault Recovery
In case of disturbances, the repeater automatically disconnects the affected segment and restores it after the fault is resolved.
Robust Fiber Optic Interface
Fiber optic ensures uninterrupted data transmission in high-electromagnetic disturbance zones, enabling enhanced connectivity for critical applications and high performance.
Integrated Bus Termination Resistor
Integrated bus termination resistors (120 Ohm, switchable via DIP switch) prevent reflections on the line ends and ensure optimum communication.
Technical Specifications
| General | |
| Content of Delivery | CAN FD repeater, user manual |

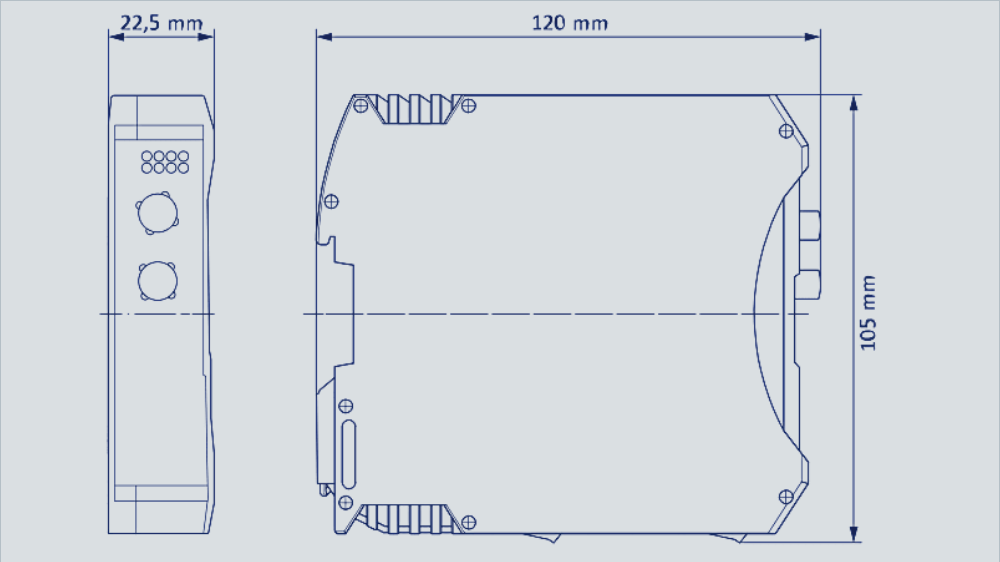

| Net Width (mm) | 105 mm |
| Net Height (mm) | 120 mm |
| Net Depth (mm) | 22.5 mm |
| Net Weight (g) | 220 g |
| Packed Width (mm) | 0 mm |
| Packed Height (mm) | 0 mm |
| Packed Depth (mm) | 0 mm |
| Packed Weight (g) | 220 g |
| Mounting | DIN rail mount (bracket included) |
| Current Consumption Type Value at Vcc Nom (mA) | 70 |
| Current Consumption Max value at Vcc nom (mA) | 100 |
| Input Voltage (V) | +9 V to +32 V DC |
| Isolation | 1 kV DC for 1 sec. |
| Operating Temperature °C Min | -20 °C |
| Operating Temperature °C Max | 70 °C |
| Storage Temperature °C Min | -40 °C |
| Storage Temperature °C Max | 85 °C |
| Relative Humidity | 10 to 95 %, non-condensing |
| Housing Materials | Polyamide housing for top hat rail mounting |
| Packaging Material | Cardboard |
| Warranty (years) | 1 |
| Identification & Status | |
| Item Number | 1.01.0210.11020 |
| Export Control Classification Number (ECCN) | EAR99 |
| Dual Usage | No |
| Country of Origin | Germany |
| Brand | Ixxat |
| HS Code | 8517620000 |
| Certifications & Standards | |
| CE | Yes |
| FCC | Yes |
| WEEE Category | IT and telecommunications equipment |
| Protection Class IP | IP20 |
| cULus | Yes |
| CAN Features | |
| CAN Mode | CAN high-speed (ISO 11898-2) with CAN choke |
| CAN Baud Rate | Up to 1 Mbit/s |
| CAN FD Features | |
| CAN FD Mode | ISO CAN FD, nonISO CAN FD |
| CAN FD Baud Rate | Arbitration rate up to 1000 kBit/s, data rate up to 8000 kBit/s (verified by testing). User defined bit rates are possible. |
| CAN FD Transceiver | MCP2562FD |
| Physical Features | |
| Fiber Optic Line Specification | Multi mode fiber optic cables (only glass); Recommended: 50/125 μm, 62.5/125 μm, also compatible with: 100/140 μm, 200 μm (consider max. line length) |

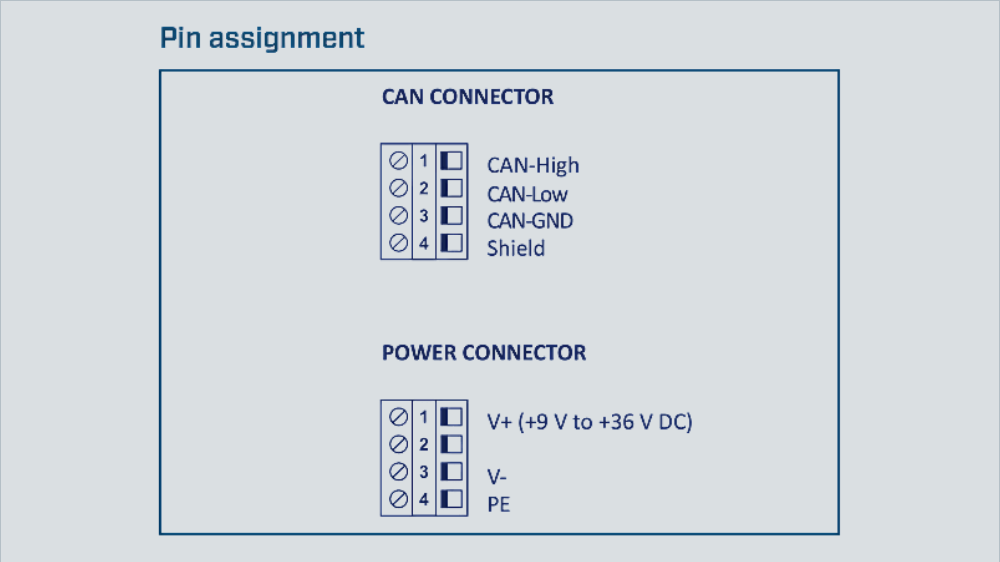

| Connectors / Input / Output | 1 x screw terminal, 1 x F-SMA connector, 1 x power connector |
| Contains Battery | No |
