Cement Testing Instruments

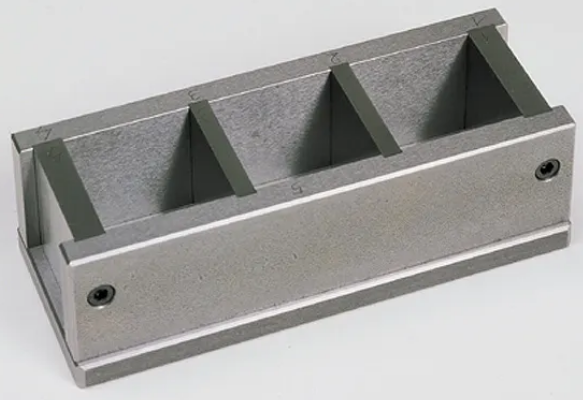

Cube Moulds - 50x50x50 MM - Three Gang Cast Iron
Compliance with following International Standards: ASTM C87, C91, C109, AASHTO T71, T108,ASTM C1194
Applications: Used for compression strength tests of Portland cement, mortars, lime and gypsum.
Salient Features:
- Cube Mold with 3 openings in parallel arrangement.
- Made from Cast Iron Material
- Precisely machined.
- Fitted with angles for attaching to studs threaded into detachable base plate
Cube Moulds - 7.06 CM Cast Iron
- Cube Mould Size: 7.06 CM
- Cube Mould Type: Cast Iron

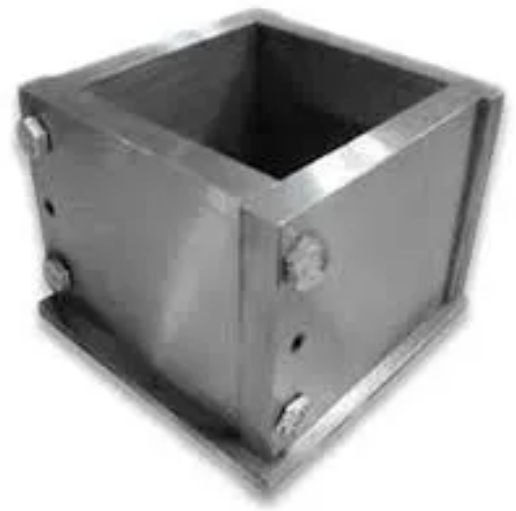

Cube Moulds - 7.06 ISI Marked for Cement
Model Number: TM-110-70.6
Compliance Standards: IS : 10080 - 1982
Applications: The mould is used in determining compressive strength of cement.
The mould will be of 70.6 mm size, made up of mild steel and will be constructed generally in accordance with IS : 10080 - 1982. The dimensions of the mould with tolerances will be as under.
- Distance between opposite face 70.6 ± 0.1mm
- Height of mould, 70.6 ± 0.1mm
- Thickness of wall plate, 12mm
- Angle between adjacent interior faces and between interior faces and top and bottom planes of mould 90 ± 0.5
- Length of base plate, 97mm
- Width of base plate, 97mm
- Thickness of base plate, 6mm
- Permissible variation in the planeness of interior faces,0.03mm
- Permissible variation in the planeness of base plate,0.15mm
- Overall Dimensions in Inches (L x W x H): 4" X 4" X 3"
- Weight (kg): 3 kg approx
The cube mould will be constructed in such a manner as to facilitate separation into two parts. The mass of the mould together with the base plate shall be 2.8 ± 0.2 Kg.
Cube Moulds - 10 CM (2Part)
Model Number: TM-110-10L
Specification :
- Cast Iron construction, Unique two part design. with diagonal joint
- Easy to use and clean.
- Size: 100 x 100 x 100 mm
- Weight : 9 kg
- Meets the requirement of BS 1881 PART 108, EN 12390-1 & ISO 1920
Cube Moulds - 10 CM Cast Iron Material - Three Gang (ASTM C109)
Compliance with following International Standards: ASTM C87, C91, C109, AASHTO T71, T108
Applications: Used for compression strength tests of Portland cement, mortars, lime and gypsum.
Salient Features:
- Cube Mold with 3 openings in parallel arrangement.
- Made from Cast Iron Material
- Precisely machined.
- Fitted with angles for attaching to studs threaded into detachable base plate

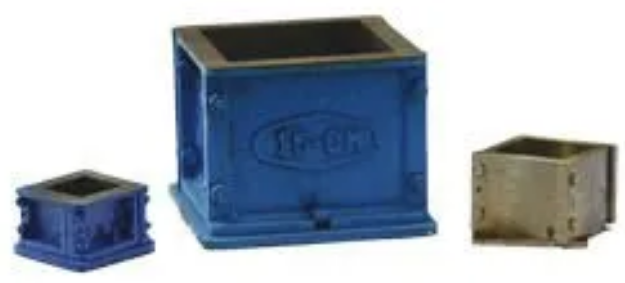

Cube Moulds - 10 CM - ISI Marked
Model Number: TM-110-100
Compliance Standards: IS 516, IS 10086 - ISI MARKED, EN 12390-1, EN 12390-3
Details:
- Made of Cast Iron, with base plate, the faces are machined flat to ± 0.02mm accuracy and finished to within ± 0.2mm of specified dimensions.
- The moulds will be stout enough to prevent distortion.
- It will be constructed in such a manner as to facilitate the removal of the molded specimen without damage and will be so machined that, when they are assembled ready for use, the dimensions and internal faces shall be accurate within the specified limits.
- Internal faces of the moulds will be smooth.
- The base plate will be attached to the mould by cleats or secured with threaded studs and nuts/wing nuts.
- Strictly as per BIS specifications and within required tolerance.
- Overall Dimensions in Inches (L x W x H): 9 x 7 x 4.7
- Weight (kg): 7.5

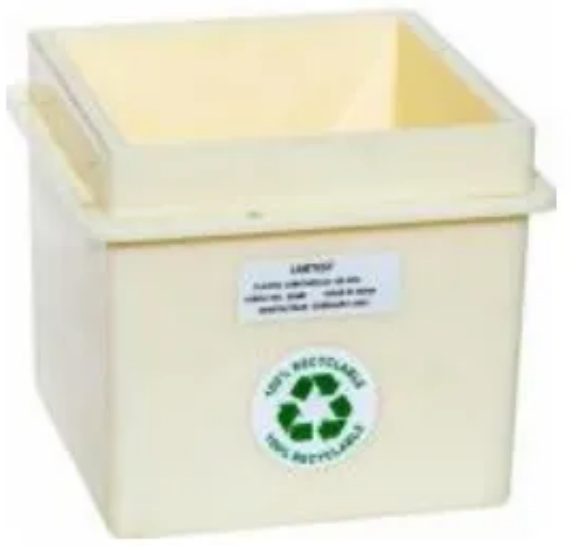

Cube Moulds - 10 CM - Plastic
Model Number: TM-109-PL
- Plastic Cube Mould
- Size: 100 X 100 X 100 MM
- Weight : 0.425kg
- IS Code 10086:2021
Cube Moulds - 15 CM (2Part/L-Type)
Model Number: TM-110-15L
Specification :
- Made of cast iron
- 150 x 150 X 150 mm in size
- Split In 2 - Parts
- L-Type design
- Supplied with base plate
- Overall Dimensions: 280 X 240 X 170 (L X W X D) mm
- Weight [kg]: 14.3
Cube Moulds - 15 CM - ISI Marked
Model Number: TM-110-ISI
Compliance Standards: IS 516, IS 10086 - ISI MARKED, EN 12390-1, EN 12390-3
Details:
- Made of Cast Iron, with base plate, the faces are machined flat to ± 0.02mm accuracy and finished to within ± 0.2mm of specified dimensions.
- The moulds will be stout enough to prevent distortion.
- It will be constructed in such a manner as to facilitate the removal of the molded specimen without damage and will be so machined that, when they are assembled ready for use, the dimensions and internal faces shall be accurate within the specified limits.
- Internal faces of the moulds will be smooth.
- The base plate will be attached to the mould by cleats or secured with threaded studs and nuts/wing nuts.
- Weight of the mould will be about 13.5-14.0 kg.
- Strictly as per BIS specifications and within required tolerance.
- Overall Dimensions in Inches (L x W x H): 11X 9X 8
- Weight (Approx.): 13.5 Kg
Cube Moulds - 15 CM - Plastic
Model Number: TM-110-PL
- One-Piece ABS PLASTIC mould
- Light weight and durable
- Easy de-moulding in few seconds. (Through Air Compressor)
- Saves work hour cost
- Size : 150 x 150 mm (15 x 15 cm)
- Weight : 1.3. kg
- Overall Dimensions in Inches (L x W x H): 7.5 x7.5x 7.5
- Weight (kg): 1.2
Cube Moulds - 50x50x50MM Brass Material Three Gang ASTM C109 Diagonal Shape
Compliance with following International Standards: ASTM C87, C91, C109, AASHTO T71, T108
Applications: Used for compression strength tests of Portland cement, mortars, lime and gypsum.
Salient Features:
- Cube Mold with 3 openings in Diagonal Shape arrangement.
- Made from Brass material.
- Precisely machined.
- Diagonal shape moulds
Cement Sampler For Bag IS:3535
Model Number: CA-7001-S
Tube Sampler for packaged cement volume, as per IS:3535-1986 (R.A.2018)
Application:
- Used to sample cement from packages.
- Made of brass material (2mm thick)
- 3mm dia hole at 50mm below the wooden handle
- It has an outside diameter of 32 mm x 730 mm long.
- Weight approx. 2 kg

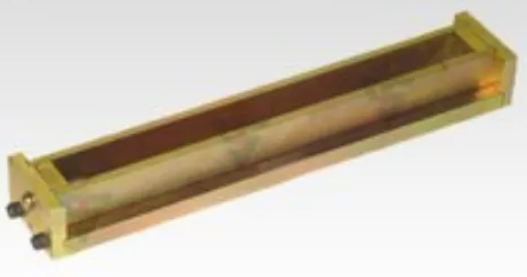

Shrinkage Bar Mould
Model Number: TM-168
Supplied with 4 pair of smooth reference Point Pins, as per IS:10086-2021, IS: 4031, ASTM C 151 . Effective Gauge Length 250mm ± 2mm, Four Mould compartment
Compression Frame Jig Assembly As Per - EN 196
Model Number: TM-042.2
Designed to test portions of 40x40x160 prisms broken in flexure. Robust frame fitted with an upper platen with spherical seat that moves vertically sustained by a spring. The apparatus has be placed and centered directly on the lower machine platen of a CTM. The total height is 195 mm. Vertical clearance of the compression machine can be adjusted using suitable distance pieces accordingly. CTM of suitable capacity has to be used. Also available as per ASTM C109
- Overall Dimensions: 205 X 205 X 250 (L X W X D) mm
- Weight (Approx.): 18 kg
Gillmore Needle Apparatus (ASTM C266, AASHTO T154)
Model Number: TM-202-S
Compliance Standards: ASTM C266, AASHTO T154, ASTM C141, ASTM C91.
Applications: Used to determine initial and final set times of Portland cement, masonary cement, hydraulic hydrated lime and certain mortars.
Details:
- The adjustable support has horizontal arms to guide two weighted needles with flat-end cylindrical stainless steel tips.
- The support assembly is adjustable. Base has ample flat shelf for positioning specimens.
- The two steel needle weights are calibrated to meet specifications.
- The needle points are manufactured from stainless steel.
- The initial setting needle is 2.12 mm in diameter and weighs 113 grams.
- The final setting needle is 1.06 mm in diameter and weighs 453.6 grams.
- Supplied with 02 Nos glass plates - Dimension 100 ± 5 mm square
- Also supplied complete with 02 Nos Cement paste pat Mould (Base diameter 76 ± 13 mm & Top diameter 50 ± 13 mm)
Features:
- Meets several ASTM and AASHTO test methods for set-time testing
- Includes initial and final-set needles
- Large base to position specimens
Curing Compound Mould ASTM C156-03
Compliance standards : ASTM C156-03, IS 10080
Test Scope: This test assesses curing compounds that form a film on the surface to control moisture loss during the curing process. It is crucial in ensuring adequate hydration, which impacts the durability and strength of concrete.
Construction details :
- The mould is made of stainless steel material and it is water tight as per the standard requirement.
- The mould is rigidly constructed to prevent distortion and it is thoroughly cleaned.
- The interior faces of the mould are plane surface.
- The mould is measured as 150mm x 300mm at the top, 143 x 295 mm at bottom, and 50 mm deep on the inside surface.
- The mould is flat rim at the top on all sides approximately 6mm in width.
- A wooden float with dimension of 75 mm x 280 mm x 20 mm thick will also be part of standard supply. The pocking rod to be supplied with the mould is made of non absorbent, non abrasive, non brittle rubber compound material.
- The pocking rod is 150mm long and has cross sectional dimensions of 25mm x 12 mm with tamping face in the form of a blunt torpedo.
- Environmental chamber, weighing balance, spray aplicator or brush are available at extra cost
- Overall Dimensions: 315 X 160 X 55 (L X W X D) mm
Length Comparator - IS 9459, IS 4031, ASTM C490
Model Number: TM-101D
Compliance Standards: IS 4031, IS 9459, ASTM C452, ASTM C151, ASTM C490
Application: To measure length change in hardened cement paste, mortar and concrete, using a suitable micrometer.
Apparatus Details:
- The instrument consists of channeled base, over which two vertical pillars are fixed.
- The vertical pillars are threaded for adjustment.
- An adjustable cross plate is at the top.
- A DIGITAL dial gauge, reading to 0.001 mm x 10 mm is fixed to the top.
- The plunger end of the dial Gauge can be located up on a 6 mm diameter ball or other reference point cemented in the specimen.
- On the base there is a similar recessed seating, in which, can be placed a second ball or reference point in the specimen.
- Complete with a stainless steel standardization bar with insulated grip and with 6.00 mm diameter ball mounted in the ends. (ASTM C490: Ball diameter: 6.35 mm (0.25 inches).)
- Overall Dimensions: 250 X 250 X 420 (L X W X D) mm
- Weight (Approx): 8 kg
ASTM C307 Mechanical Grip for Mortar and Grout Tensile Test
Model Number: EIE-TG-01ASTM
Complies with following International Standards: ASTM C307, AASHTO T 132
Details
- The equipment is composed of lower and upper handles, which are equal. Its purpose is to determine the resistance to traction of briquettes special form of mortar, mortar and other similar materials of monolithic lining.
- The stop plates on the grips center the specimen fore and aft. Through the rollers at the ends of the handles, the sample is loaded on the four shoulders.
- To accommodate any type of attachment testing machine, each outer end of each group contains a threaded hole.
- The moulded sample briquet is 3 “long, 1” wide in the central part, and 1 3/4 “in width at its ends. The uniform thickness is of 1″
Photometric Test Apparatus for Quick Determination of SO3 In Cement
Model Number: EIE-7011
Salient Features:
- Double light intensity meter for higher accuracy
- Built-in constant voltage transformer for stable power supply
- High-quality components for long-lasting performance
- Easy-to-use, enabling rapid analysis in a few seconds
- Ideal for frequent testing of multiple batches
Test Codes and Standards:
- Indian Standards: IS 4032 – Method of Chemical Analysis of Hydraulic Cement
- International Standards: ASTM C114 – Standard Test Methods for Chemical Analysis of Hydraulic Cement
This apparatus is designed for laboratories and facilities requiring high-frequency testing and accurate results, streamlining the quality assurance process in cement production.
- Weight: Approx. 10 KG
- Overall Dimensions: 475 x 350 x 350 mm approx.
Blaine Air Permeability Apparatus Fully Automatic PC Controlled
Model Number: 62-L0041/F
Compliance Standards : EN 196-6, ASTM C204, BS 4550
Applications : This test method concerns the determination of the particle size of Portland cement, limes and similar powders using the Blaine air permeability apparatus. The measure of fineness is expressed in terms of the specific surface area (the total particle surface area) in square centimeters per gram or square meters per kilogram
Features :
- Time resolution : 0.01 s
- Temperature resolution : 0.1 C
- Real time displaying of temperature, constant K, passing time and other parameters.
- Up to 5 reference cements as standards in each testing methods EN 196-6 or ASTM C204 up to 20 different types of cement can be memorized.
- Up to 1000 complete data test can be memorized in a nonvolatile memory.
- USB 2.0 communication for memorized data export i.e. to Excel Multilanguage
Specification :
- Power supply : Single phase, 230 Volts, 50 Hz, AC Supply
- Dimensions : 220 x 170 x 470 mm
- Weight approximately : 8 kg

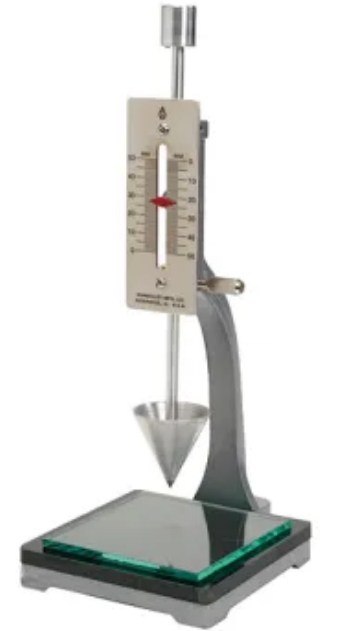

Vicat Needle Apparatus for Gypsum Test
Model Number: TM-202-M
Compliance Standards: IS 2542 (P-1), ASTM C472,EN 196-3,BS 4550 Part 3 Section 3.5
Applications: Is used to determine the volume of water required for mixing Gypsum Plaster When performing the setting time and compressive strength test.
Apparatus Details:
Complete with following parts and accessories
- Brass rod of 6.35 mm diameter to fit the vicat bracket.
- Conical plunger, Aluminum cone with angle 53° 8 min, 45 mm height
- Vicat mould 60/70 diameter x 40 mm
- The total weight of the rod & plunger will be 35 grams.
- Glass plate 110 x 110 x 3 mm
- Overall Dimensions: 120 X 180 X 320 (L X W X D) mm
- Weight (Approx.): 3 KG
Bentonite Slurry Sampler 50 MTR
Slurry-Sampler is designed for capturing samples of drilling fluid from any specific depth within an excavation or borehole. This special sampler assures slurry samples taken produce a representative sample for proper test results. The use of a sampler is important for exact depth confirmation of viscosity, specific gravity, pH, and sand content data collection in the drilling fluid.
Directions of Use:
Lower or drop the Slurry Sampler into the slurry within the excavation. The bottom container open and allow the fluid to pass through the sampler as it falls to the intended level from where the sample is to be grabbed. When the sampler’s drop is stopped, the bottom container close and the sample is captured within the tube of the sampler.
When pulling the Slurry-Sampler upward through the column of fluid to collect the test sample, the bottom container remain closed preserving the representative sample.
Do not drop the sampler down at any time as this will allow fluid entry and impact the sample.
- Bailer diameter: 4" approx
- Fdot approved: Yes, for drilling fluid slurry testing
- Construction: Ms body with
- Chamber length: 775 mm
- Overall Dimensions in Inches (L x W x H): 5 X 5 X 38
- Weight, approx.: 11 kgs

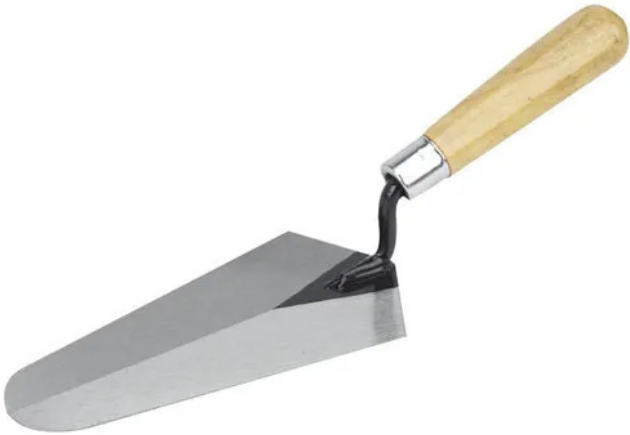

Gauging Trowel (6") 150MM
Model Number: TM-185
Gauging Trowel Ref. Standard ‑ IS:4031/ IS:10086 - 100 to 150 mm long Steel blade with straight edge. Weight 210 ± 10 gm.
- Overall Dimensions: 290 X 90 X 60 (L X W X D) mm
- Weight (Approx.): 200G
Gauging Trowel (8") 200MM
Model Number: TM-184
- Pointed type with approx.
- 210 gm weight.
- Fitted with best quality wooden handle.
- RELEVANT STANDARD : IS : 4031, BS 12
- Overall Dimensions: 330 X 90 X 60 (L X W X D) mm
- Weight (Approx.): 200G

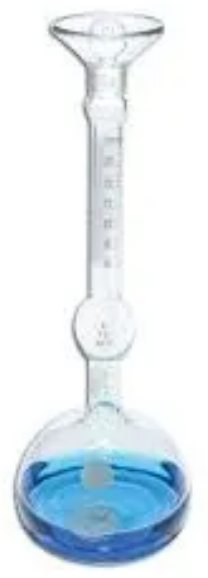

Le-Chatlier Flask
Model Number: CA-1002
Compliance with following International Standards: ASTM C188, AASTHO T133, EN 196-6, IS :4031 (Part XIII)
Application: Used for measurement of specific gravity of hydraulic cements.
Construction Details:
- Made of good quality glass
- Bulb capacity approximately: 250 ml
- Neck graduation from: 0 to 1 ml and 18 to 24 ml
- Accuracy: 0.1 ml
- Overall Dimensions: 100 X 100 X 300 (L X W X D) mm
- Weight (Approx.): 1.050 Kg
Poking Rod (For Vibrating Machine) - Rubber
Model Number: TM-199.1A
Compliance Standards: IS 10080 : 2026
Details:
The poking rod made of hard rubber compound having shore A durometer hardness of 80 ± 10. The poking rod shall be 150 mm to 175 mm long and
shall have cross-section of 12 mm × 25 mm with tamping face in the form of a blunt torpedo, as per clause 4.5 & fig.3 of IS 10080 : 2026
- Overall Dimensions: 150 X 250 X 15 (L X W X D) mm
- Weight (Approx.): 100G
Le-Chatlier Mould (For Soundness Test)
Model Number: TM-102
Compliance Standards: IS 4031 (Part 3), ASTM C151, EN 196-3:
Details of apparatus: The apparatus consist of a small split cylinder of spring brass metal of 0.5 mm thickness forming a mould of 30 mm internal diameter and 30 mm high. On either side of the split, two indicators are brazed suitably with pointed ends made of 2 mm diameter brass wire in such a way that the distance of these ends to the centre of the cylinder is 165 mm. Supplied complete with two glass plates and lead weight. Set of Six.
- Overall Dimensions: 330 X 230 X 50 (L X W X D) mm
- Weight approx: 1 Kg
Additional Accessories required for the test :
- Waterbath with stand to keep Le-Chatlier Moulds
- Gauging Trowel
- Electronic Weighing Balance 1 kg X 0.01 gm
- Digital Vernier Caliper 0-150mm X 0.02 mm

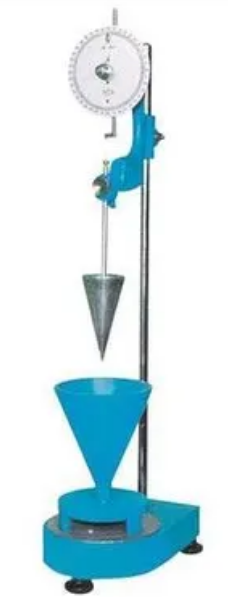

Cone Penetrometer For Cement Mortar - IS 2250
Model Number: EIE-7019
Compliance Standards : IS 2250-1965 (Annex A)
Applications : For determining the consistency of masonary mortar.
Details :
- Consists of a movable bearing rod to which a cone 150 mm long and 75mm dia at a base, weighing about 300gm, is fixed.
- The bearing rod passes freely through a bracket which is provided with release mechanism.
- A dial graduated in mm with rack and pinion is provided for measuring the penetration.
- Complete with a conical container 150 mm ID x 180 mm deep and a platform.
- Flow Table required for the test is available at extra cost
Cement Mortar Flexural Testing Jig - EN 196, EN 1015
Model Number: TM-042.1
Compliance Standards: EN 196 (Part-1), EN 1015 (Part-11) IS:4031 (Part 8)
Details:
- The flexural Jig is designed for testing of 40 x 40 x 160mm cement prism
- The frame is fitted with roller beaters accordance to EN 196-1.
- Robust frame fitted with an upper bearer that moves vertically supported by springs.
- One of the two lower bearer can tilt horizontally and the distance between the two bearers is 100 mm.
- Two lower bearer (supporting rollers) are of Length between 45-50 mm, having (10 ± 0,5) mm diameter.
- The upper bearer also has same length between 45-50 mm, having (10 ± 0,5) mm diameter.
- Total Height 188 mm.
- Overall Dimensions: 205 X 205 X 250 (L X W X D) mm
Note: The compression/Flexure Machine capable enough to exert 50 N/S loading rate for accurate results as per above listed EN Standards is available. Test Jig as per ASTM C348 is also available
Sulphide Sulphur Test of Slag Cement with Accessories
Model Number: EIE-7012
As per IS:4032, clause 6.12. Complete with necessary glassware's and heating unit but without chemicals and titration assembly. Source of compressed air has to be arranged by the user.
- Overall Dimensions: 600 X 900 X 650 (L X W X D) mm
- Net weight (in kg): 5 kg
Tamping Stick 16MM Dia x 152MM Long Hard Wood ASTM C185
Compliance Standards: ASTM C185, ASTM C780
Applications: Helps to release entrapped air When consolidating samples in AIR CONTENT MEASURE - 400 ML
Details:
- Diameter : 16 mm
- Length : 152 mm
- Made from hard wood
Prism Mould - 40x40x160MM Single Mould Compartment - Mild Steel Material
Compliance Standards: IS:10078, IS: 4031 (Part-VIII) (This is not strictly as per IS. As per IS, three gang mould is required)
Applications: To cast the specimen of 40 x 40 x 160 mm dimensions to determine the Transverse strength of Plastic Mortar.
Technical Specifications :
- EIE moulds are made of high quality metal
- Strong enough to resist distortion & retain their shape and size even under rugged conditions
- Mould is supplied complete with base plate
- Two reference points per compartment of the mould are incorporated
- Mould Size : 40 mm x 40 mm section and 160 mm effective length
- No of compartments: Single Compartment
- Thickness of wall plate: 10 mm
- Length of base plate: 276 ± 2 mm
- Width of base plate: 240 ± 2 mm

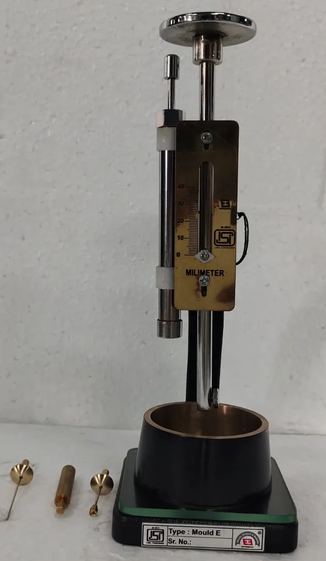

Vicat Needle Apparatus - ISI Marked
Model Number: TM-202-ISI
Compliance Standards: IS:5513,IS-4031(PART 5), IS 4031 (PART 4)
Details: Vicat apparatus will be manufactured as per IS 5513-1996 and will include dashpot to facilitate the gentle lowering of the movable rod.
- Overall Dimensions in Inches (L x W x H): 13 X 12 X 14
- Weight (kg): 6Kg

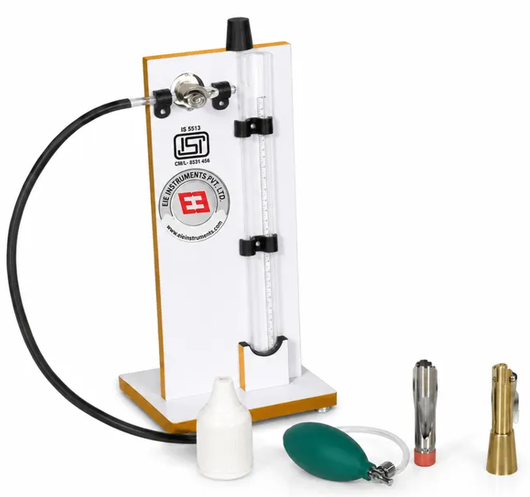

Blain Air Permeability Apparatus - ISI Marked
Model Number: TM-022ISI
The Blaine Air Permeability Apparatus is designed to meet rigorous standards for determining the fineness of cement, pozzolanas, and similar powdery materials by measuring the specific surface area. Manufactured to comply with IS:4031 (Part 2), IS 5516, ASTM C204, and EN 196-6, it provides precise and reliable results, crucial for laboratory and quality control applications in construction and materials testing industries.
This apparatus is essential for assessing the performance of powdered materials, which can significantly affect the strength, durability, and hydration of cementitious products. It includes a complete set of high-quality, precision components tailored for accurate air permeability testing.
- Overall Dimensions in Inches (L x W x H): 21 X 13 X 8
- Weight (kg): 4KG
Filter Paper Whatman No.40 - 12.7MM Dia PKT of 400 Nos.
Model Number: 1440-012
- Cat. No.: 1440-012
- Pkt of 400 Nos.
High Precision Electronic Balance 220 GM 0.001 GM-1MG External Calibration Model SAB 223CL
Model Number: SAB-223-CL
Features :
- Single Touch Key External calibration, ensures the highest accuracy at the press of a key.
- Support: Weighing, Counting, Percentage, Animal Weighing. Optional: Density measurement.
- 18 standard units, with all character mark.
- Strong anti-shaking monolithic electromagnetic for highest accuracy.
- Standard 1500V isolation USB port, ease to connect with PC.
- User selectable filter, stability indicator and auto-zero tracking for use in difficult environment.
- Large, sturdy and nearly frameless, all-glass draft shield chamber for optimal viewing of weighing chamber The draft shield doors and all stainless steel parts of the weighing chamber base are easy to remove in just a few steps for cleaning.
- Backlit, high-contrast display with 15 mm digits; exceptionally easy to read under any room lighting conditions
- Capacity: 220 gm
- Resolution: 0.001g
- Repeatability: ± 0.001
- Linearity: ± 0.0015
- Response Time: < 3 Second
- Pan Size: 110 mm Dia.
- Calibration: External
- Technology: Monolithic Block Technology
Reference Point Pins - Measuring Studs For Shrinkage Bar Mould ASTM C490
Model Number: EIE-RPP-01
Compliance Standards: ASTM C490, EN 12617-4, EN 12808-4, IS:10086-2021, C441
Details
- Length : 22 mm
- Effective extension inside the bar mould will be 16mm
- Diameter : 06 mm

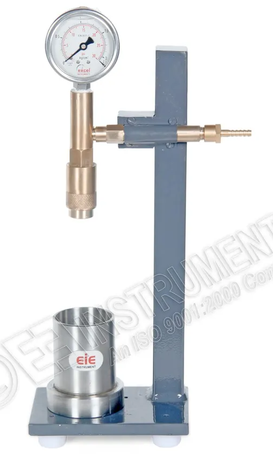

Wet Sieving Apparatus - IS: 4031 (Part 15)
Model Number: TM-022.1
Applications: Wet Sieving Apparatus is used for determining the fineness of fly ash.
Description: Supplied with Pressure Gauge, Spray Nozzle fitting to attach the Apparatus to a Water Source.
- Overall Dimensions in Inches (L x W x H): 9 x 10 x 19
- Weight: 5.5 KG

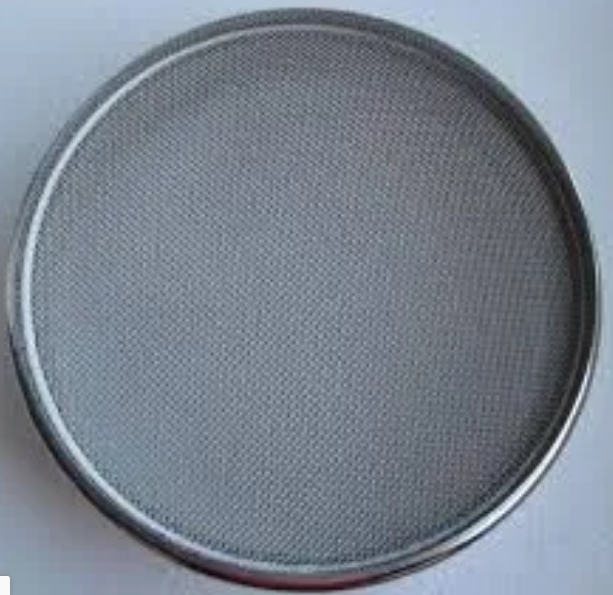

Wire Mesh Frame (Stainless Steel) For Wet Sieving Apparatus (ASTM C430)
Compliance Standards: ASTM C430
Details: A special stainless steel sieve, 0.045 mm opening, No.325 stainless steel wire cloth. The frame is 2 inches (50.8 mm) in diameter, and 3 inches (76.2 mm) deep from rim to cloth.
Spray Nozzle For Wet Sieving Apparatus ASTM C430
Compliance Standards: ASTM C430
Details: A spray nozzle Ø 17.5 mm diameter with 17 holes, Ø 0.5 mm oriented and spaced to conform to the standards.
Shrinkage Bar Mould - 25x25x282 MM - Three Mould Compartment
Model Number: TM-167.3
Compliance Standards: IS 4031, IS:10086-2021, ASTM C 227, BS 1881
Details:
- Made of Mild steel Material
- Has accurately machined faces
- Tight fittings and firmly held together when assembled
- 25mm x 25mm x 282mm Effective gauge length (250 mm effective length is the distance between two inner most reference points available within the mould.)
- Three compartments assembled on angle base plate.
- Supplied complete with base plate and stainless steel smooth referenced points
- Overall Dimensions: 13" X 5" X 2" ( L X W X H)
- Weight (Approx): 5.5 kg

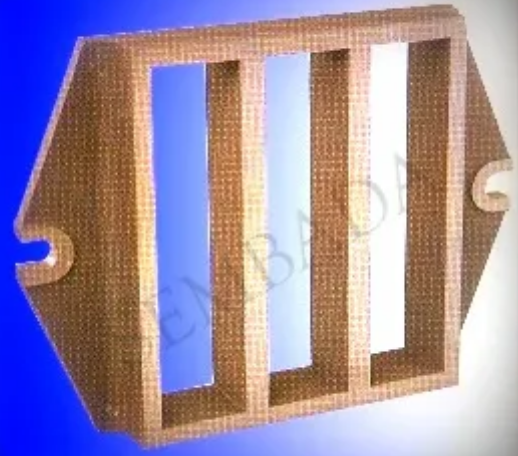

Feeding Hopper - For Jolting Apparatus
Compliance standards: EN 196, IS 10078
Details:
- Feeding hopper for 40 x 40 x 160 mm
- Made from cast aluminum material
- For feeding the three gang moulds

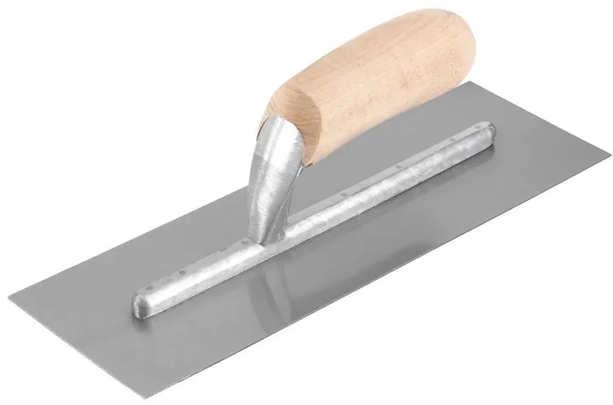

Finishing Trowel Short Spreader
- Plastering trowel
- Carbon steel blade
- Moulded durable plastic handle/Wooden Handle
- Overall Dimensions in Inches (L x W x H): 4 X 9 X 2
- Weight (Approx.): 130G
Finishing Trowel Long Spreader
- Plastering trowel
- Carbon steel blade
- Moulded durable plastic handle/Wooden Handle

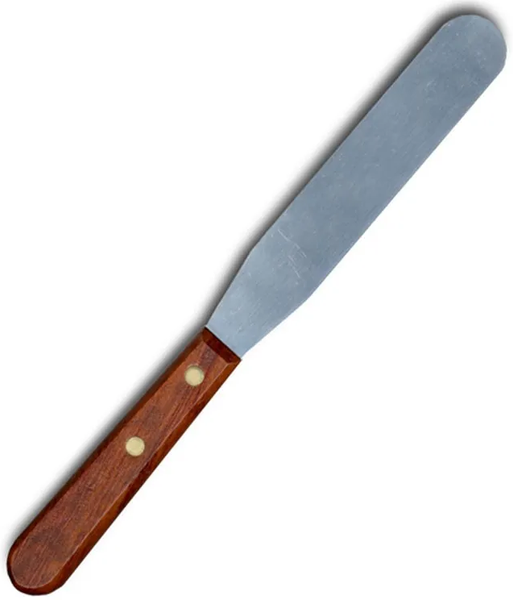

Spatula 8" (82119390) - 12%
ASTM D882, ISO 9073 Mechanical Vice Grip For Thin Plastic Film and Non-Woven Fabric
Compliance Standards: ASTM D882, ISO 9073, ASTM D5035
Details of the grip
- A versatile general-purpose grip for Paper, Plastics, Textiles, Metal foil, Aluminum, Brass etc.
- Dual acting design allows gripping asymmetrical samples
- Jaws pivot for self-alignment
- Opening: 0 - 50 mm
- Clamping surface: 30 x 50 mm (H x W)
- Weight: 0.25 kg each grip (without jaws)
- Temperature Range: 0°C - +70°C (depending on jaws)
- Body: Anodized aluminium
Gauge Plug For Drying Shrinkage Apparatus
As per IS 6441 P-2. Gauge plugs are made of S.S. and are shaped in such a way that positive contact is ensured with the Length comparator. per Pair.

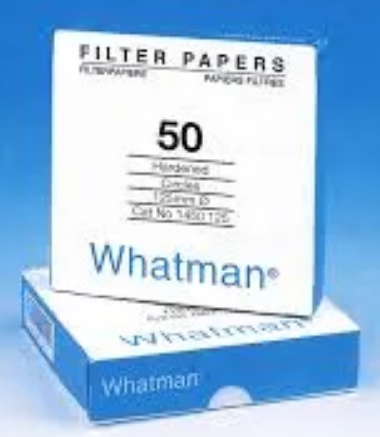

Filter Paper Whatman No.50 - 150 MM Dia PKT of 100 Nos.
Model Number: 1450-150
Details
- Retention of very fine crystalline precipitates.
- The thinnest of all Whatman filter papers with a slow flow rate.
- Hardened and highly glazed surface.
- This finish also keeps the paper free from loose surface fibers.
- Highly suitable for qualitative or quantitative filtrations requiring vacuum assistance on Büchner or 3-piece filter funnels.
- Diameter: 15 cm (150 mm)
- Retention: 2.7µm
- Manufacturer Part No: 1450-150
- Pack: Pack of 100 Nos
Straight Edge 300MM
Model Number: TM-165.2
- A steel strip about 30 cm long, 2.5 cm wide and 3 to 5 mm thick
- With one beveled edgE
- As per IS:2720 (P-29)
- Overall Dimensions: 30 X 300 X 5 (L X W X D) mm
- Weight (Approx.): 0.325 Kg
Gillmore Initial Setting Needle
Model Number: TM-202-S.1
Compliance Standards: ASTM C266, AASHTO T154, ASTM C141, ASTM C91
Applications: Used to determine initial and final set times of Portland cement, masonry cement, hydraulic hydrated lime and certain mortars.
Details: The initial setting needle is 2.12 mm in diameter and weighs 113 grams.
Measuring Cylinder - Plastic 2000 ML
Model Number: 80038
Polylab measuring cylinders Moulded in polypropylene are single piece cylinders. These autoclavable cylinders have raised prominent graduations for easy reading & have excellent contact clarity. The hexagonal base provides excellent stability to the cylinder where as the tapered spout works really well while pouring any reagent.
- Overall Dimensions in Inches (L x W x H): 7" x 7" x 22"
- Weight (Approx.): 0.350 Kg
Cement / Fly Ash Sampler - For Bulk Sampling
Model Number: CA-7001-B
The slotted tube-sampler will be between 1.5 to 1.8 meter long and about 35 mm in outside diameter and will consist of two polished brass telescopic tubes with registering slots which are opened or closed by rotation of the inner tube; the outer tube being provided with a sharp point to facilitate penetration.
Compliance Standards: ASTM C183,IS-3535 (Fig.1)
Details
- For sampling hydraulic cement in bulk shipments or bulk storage.
- Has two polished brass telescopic tubes with registering slots (with partitions) that open or close by rotation of the inner tube.
- Outer tube has sharp point to facilitate penetration.
- Made from brass with wooden handle,
- Inner Brass tube of 28.5 mm OD X 2mm thick, total length 1845 mm, with 8 slots.
- weight 7.500 per unit
- Can also be used for fly ash sampling
- Overall Dimensions: 1850 X 40 X 40 MM (L X W X H)

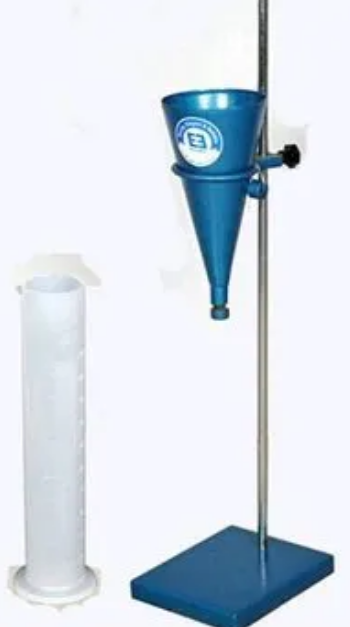

Marsh Cone Funnel With Stand and Measuring Cylinder For Grout Test IS 14343
Model Number: EIE-7018
The Marsh Funnel Test is a good indicator of true viscosity of the grout slurry, it is also an important index property for quality control of field mixes
- This cone is used to find out viscosity of slurry and like material.
- The marsh cone is 150 mm in diameter at the top and 300 mm long and tapers to join a tube 50mm long having 5 mm inside dia.
- Top of the cone has a screen with 1.5 mm opening for screening out lumps.
- The capacity of the funnel is 2000 cc.
- Time in seconds required to flow out 1000 cc of slurry from cone is measured as funnel viscosity of the material.
- Supplied with a 1000 CC Plastic Measuring Cylinder.
- Supplied without stop watch
- Overall Dimensions: 280 X 210 X 930 (L X W X D) mm
- Net weight (in kg): 7 Kg
Flow Cone Apparatus - EN 445 For Mortar, Mud and Grout
Model Number: EIE-7021
Compliance Standards: EN 445, NF P18-358, NF P18-507
Application: Used for determining the flow properties of grouts, mortars, muds and other fluid materials. EN 445 & NF P18-358 use a 10 mm orifice for testing standard grout flow time. NF P18-507 specifies a 15 mm orifice, likely to accommodate thicker grouts or different testing conditions. The selection of the orifice size depends on the type of grout being tested and the flowability range expected in the application.
- Cone Top Diameter: 155 mm
- Total Length: 290 mm
- Capacity: 1700 CC
- Weight: 10 Kg Approx.

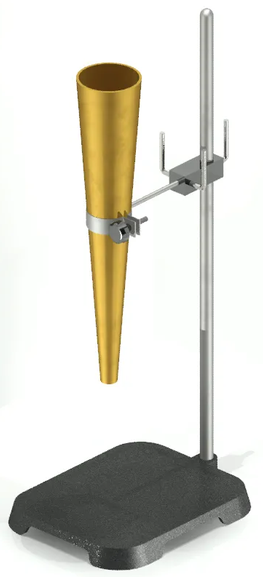

J14 Funnel With Stand With Measuring Cylinder
Model Number: EIE-7018-J-14
As per EN 445, EN 934-6 , NF P18-507, JIS A 6204.
Specification :
- Measures efflux time (time for a fixed volume of grout to pass through the funnel).
- Typically used in high-fluidity grouts where flow cone methods may not be sensitive enough.
- Often used in tunneling and underground construction applications.
- The orifice diameter of J14 Funnels may vary depending on the standard, but it is usually around 14 mm.
- Funnel made of Brass
- Stand made of Mild steel / Cast Iron
- Supplied with a Plastic Measuring Cylinder
- Top Inner diameter : 70 ± 1 mm,
- Bottom Inner Diameter : 14 ± 0.3mm,
- Height : 392mm
- Stop watch available at extra cost.
- Overall Dimensions in Inches (L x W x H): 8 X 11 X 32
- Weight (Approx): 6.5 kg

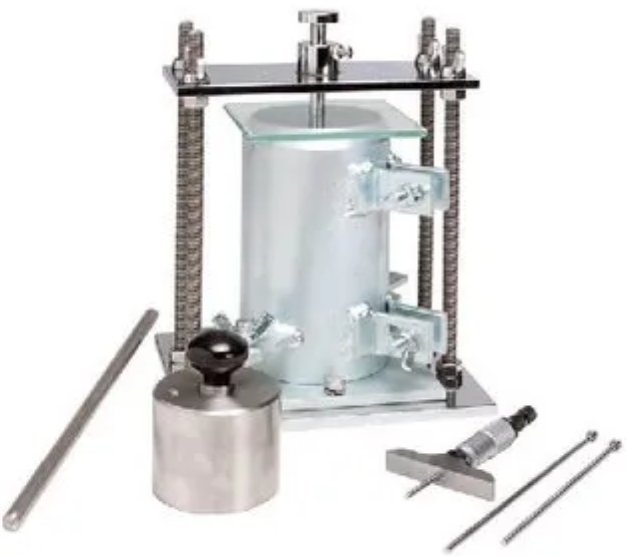

Grout Volume Change (Micrometer Bridge Set)
Model Number: EIE-7020
AS PER ASTM C1090
Grout Volume Change (Micrometer Bridge Set) is useful in measuring grout volume change. It is not a single machine but it is a unit of different tools. The unit is so well designed that it can hold one cylinder for repeated volume change measurement. During the measurement, there is no movement or disturbance in the specimen.
The unit testing covers the determination of changes in height. It measures from the time of molding till the mixture gets harden. The machine also measures the volume change that happens due to hydration and settlement.
Grout Volume Change is also capable of measuring volume change due to evaporation, chemical effects as well as physical effects.
Specification:
- Micrometer Bridge
- Micrometer Depth Gauge 25mm
- Cylinder Mould 75x150mm
- Temping Rod
- Glass Plate 100mm
- Weight 3 lbs, 6kg

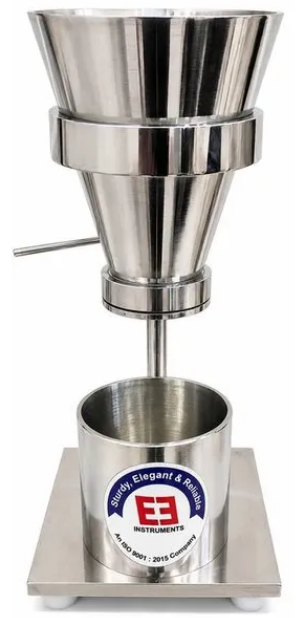

Apparent Bulk Density of Unpacked Mortar Powder CSTB 2435
Compliance Standards : CSTB 2435
Applications : To determine the ratio of weight to volume for a product in mortar powder.
Details : Consists of
- Sieve Funnel with stand
- The discharge hole of the funnel has 4 mm dia.
- 0.5 liter capacity Unit Weight Measure (cylinder),
- Small Rigid Spatula
- Small Round Aluminum Scoop
- All dimensions confirming to Figure 1 of CBST 2435 Standard
Note: Client shall have electronic balance of accuracy 0.01 gram to determine the apparent bulk density
Slurry Sampler 50 MTR. With Rope Bailer
Model Number: EIE-SS50WRB
Tie the suspension cord to the bailer hook. Lower the bailer slowly down the borehole to the desired depth. Yank up on the SAMPLE BAILER allowing the SAMPLE BAILER to collect a sample, and then raise the bailer gently to the surface to maintain sample integrity. Empty the SAMPLE BAILER contents into a sample bottle.
- Construction: PVC body and lifting bail
- Chamber length: 20"
- Overall Dimensions in Inches (L x W x H): 175 X 175 X 575 mm approx.
- Weight, approx.: 5.4 kgs
Advantages:
- Collects slurry samples accurately
- Meets specification to collect slurry samples from different depths
- Large enough to collect slurry for all the required tests
- Used to collect samples for specified physical properties of drilling slurry density, sand content, pH, and viscosity Characteristics
- The white PVC re-usable sample bailers are designed to retrieve a sample from specific depths. The threaded all PVC construction and the removable top and bottom valves make cleaning quick and easy Packaging
- 3” white PVC threaded SAMPLE BAILER 3.500 O.D. x 24” long.
Bulk Density of Cement Apparatus
Bulk Density of Cement Apparatus is used for the measurement of the apparent density (bulk density) of powders and non-cohesive materials. It consists of Sieve Funnel with Tripod, 1 liter capacity Unit Weight Measure, Medium Rigid Spatula, 40 cm Straight Edge and Medium Round Aluminium Scoop. The discharge hole of the funnel has 8 mm dia.
