CSS CANedge2 (SD + WIFI)
2 Ch CANBus Data Logger (SD and WIFI)
The plug and play 2 Ch CAN/LIN logger records timestamped CAN data (Classical/CAN FD) to the extractable 8 GB industrial SD Card.
The small device connects via WiFi access points (e.g. WLAN or 3G/4G routers) to securely push data to your server. Further, the device can be updated over the air.
CANedge2 is ideal for telematics, R&D field tests, diagnostics and predictive maintenance.
Pro Specs CSS CAN Logger at half the cost
CSS CANedge2 combines innovative design, cutting-edge components, incredibly low costs:
- 2 x CAN (incl. CAN FD) + 2 x LIN channels
- Extractable 8-32 GB industrial SD card (= months of data)
- Popular binary MDF4 log file format
- Advanced message filtering & transmit functionality
- Route data from CAN1/2, LIN1/2 onto CAN1/2
- Start/stop logging triggers based on CAN ID & databytes
- Silent mode, bit rate auto-detection, cyclic logging
- Data compression & encryption (e.g. for GDPR, CCPA)
- Support for CAN/LIN error frame logging
- Fast boot time. Safely disconnect during use (power safe)
- Add CANmod to e.g. log 5 x CAN or temperature/analog data

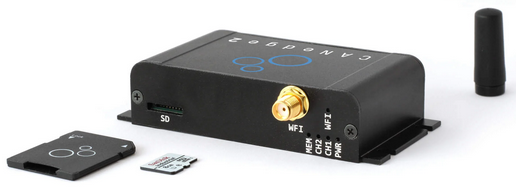

CSS CANedge2 includes an extractable 8-32 GB industrial SD card (Class 10). This ensures e.g. optimal endurance and rapid offline data transfer (W/R 50/80 MB/s)
CSS CANedge2 enables logging of raw CAN/LIN data incl. CAN FD, J1939, CANopen, OBD2, UDS, ISOBUS, NMEA2000 - across any CAN/LIN application.
CSS CANedge2 is designed to be extremely compact (75 x 47 x 20 mm). Despite the robust aluminium enclosure, it weighs only 100G.

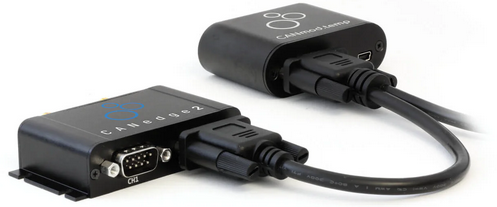

2nd port (CH2) provides a configurable 5V power out, letting you easily power e.g. CANmod sensor-to-CAN modules (temperature, analog/digital/pulse, …)
2x high speed CAN channels enable time-synced recording of data from two CAN buses - ideal for e.g. many heavy duty vehicle applications

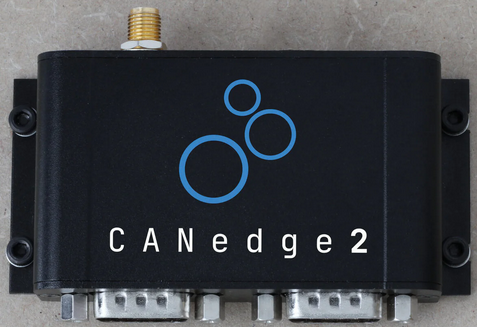

CSS CANedge2 comes with flanges to enable easy installation at scale. The 'mounting kit' includes screws and optional vibration dampeners.

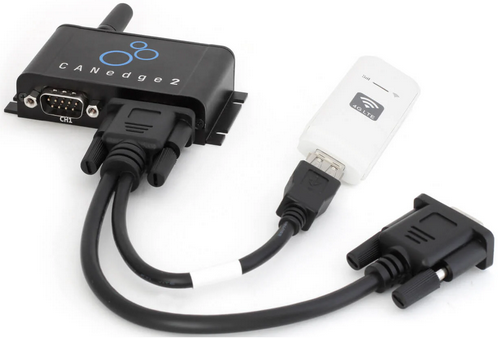

CSS CANedge2 can upload data via any WiFi router, incl. a 3G/4G WiFi USB router that can e.g. be powered via the 2nd port (see also the CANedge3)
Reinventing Telematics
Fleet telematics is vital across vehicles and machines.
Users face challenges, expensive subscription. No data ownership. Security concerns. Vendor Lock-in.
CSS CANedge2 provides a modern alternative:
- Upload data to your own local/dedicated cloud server
- Simply add WiFi access point and server details to the config
- Log data to the SD and auto upload when connected to WiFi
- Configure file split size/period to control upload frequency
- 100% secure, HTTPs, credential encryption and more
- Manage via over the air updates (firmware and configuration)
- Power e.g. a 4G hotspot or GPS to CAN via the 2nd port
- Zero fees. Zero lock in. Interoperable. Open source tools
Open Source Software/API Naturally
CSS CANedge2 uses open formats (MDF4 data, JSON config, S3 Server) and all software/APIs are 100% free and open source.
The software toolbox includes:
- Editors - Easily modify your device config (online/offline)
- Converters - Convert data to Vector ASC, PEAK TRC, CSV, ...
- asammdf GUI - DBC convert, plot and export your data
- Python API - Automate your data processing and integrations
- Dashboards - Visualize data in custom browser dashboards
- CANcloud - Manage connected CANedge2 devices and data
- S3 drive - Mount your S3 server as a "local drive"
Technical Specifications
| General | |
|---|---|
| Functionality | Standalone CAN bus data logger with SD Card, 2xCAN/LIN channels (incl. CAN FD) and WiFi |
| Firmware | Supports free firmware updates for adding features |
| Configuration | Configuration files based on the popular open source JSON schema concept |
| Software | Free open source editor tool for easy device configuration (offline/online version available) |
| Free open source CANcloud telematics platform for managing devices & data via your browser | |
| Multiple tools for mounting your S3 server as a local drive for easy access | |
| Free open source asammdf software & API for editing, DBC converting & plotting MF4 data | |
| Free open source MF4 converters - drag & drop log files to convert into e.g. CSV, ASC, TRC | |
| Free open source Python API - e.g. for automated data processing, reporting or integrations | |
| Free open source telematics dashboards for visualizing your DBC decoded data in your browser | |
| Safety | CE-RED, FCC, IC, RoHS, ECE R10 (automotive EMC), WPC ETA (India), RCM (Australia), ICASA (South Africa) |
| For Korea/Japan, a certified 'PB' variant with internal WiFi antenna is used (KC, GITEKI) | |
| Variant certified for South Korea, Japan & more is available on-request | |
| Warranty | 1-year warranty |
| Support | Free, fast & high quality support |
| Origin | Denmark |
| CAN Bus | |
|---|---|
| Channels | 2 x CAN channels (incl. CAN FD support) |
| Standard | ISO 11898: Compliant with CAN (up to 1 Mbit/s) and ISO & Bosch CAN FD (up to 5 Mbit/s payload rate) |
| Protocols | Log raw data from CAN based protocols (J1939/FMS, CANopen, NMEA 2000, OBD2, CAN FD, UDS, ... |
| Identifiers | Compliant with CAN specifications 2.0A (11-Bit ID) and 2.0B (29-Bit ID) |
| Bit-Rate Auto-Detect | Bit rate can be auto-detected or set manually |
| Retransmission | Configurable retransmission of frames that have lost arbitration or been disturbed by errors |
| Transceiver Protection | ±16kV HBM ESD, ±15kV IEC ESD, ±70V bus fault, short circuit |
| Common mode input voltage: ±30V | |
| TXD dominant timeout (prevents network blocking in the event of a failure) |
| LIN Bus | |
|---|---|
| Channels | 2 x LIN channels |
| Publisher/Subscriber | Each LIN channel can be configured as a LIN subscriber/publisher with support for LIN data transmission |
| Custom Length | Support for custom frame lengths |
| Standard | Compliant with LIN 2.0 up to 20Kbit/s (support for Classic & enhanced checksum format) |
| Transceiver Protection | ±8kV HBM ESD, ±1.5kV CDM, ±58V bus fault |
| TXD dominant timeout (prevents network blocking in the event of a failure) |
| Data Logging | |
|---|---|
| SD Card | 8 GB extractable Class 10 industrial micro SD (SDHC) included (optional 32GB) - read at 80 MB/s |
| Parallel CAN/LIN | Record data from up to 2 x CAN channels + 2 x LIN channels, simultaneously |
| Real-Time Clock | Yes - CAN frames are date & timestamped with 50 microsecond resolution (battery backup) |
| The RTC can be configured to match local time zones (default: UTC) | |
| The RTC can be auto-synced via WiFi or a CAN message (e.g. from a precise GNSS timestamp) | |
| Log File Format | Log data in industry standard binary MF4 (easily convert to e.g. CSV, ASC, pandas, MATLAB, ...) |
| Data Compression | Configurable embedded log file compression (~50-80% size reduction) |
| Silent Mode | Configurable silent mode: Restricted (acknowledge only) or monitoring (zero transmission) |
| Filters | 128/64 regular/extended ID filters per channel (range, mask, acceptance, rejection) |
| Prescaling | Prescale CAN frames to record e.g. by time (per X ms) or by data (e.g. if byte X or Y changes) |
| Transmit | Transmit lists of CAN frames per channel (single-shot/periodic) - e.g. for OBD2/UDS/XCP/J1939 requests |
| Gateway Routing | Data from CAN1/2 and LIN1/2 can be routed onto CAN1/2 (with optional ID re-mapping) |
| CAN Error Frames | Support for logging CAN error frames (bit-stuffing, form, CRC, bit, acknowledgement) |
| LIN Error Frames | Support for logging LIN error frames (checksum, receive, synchronization, transmission) |
| Remote Frames (RTR) | Support for logging/transmission of remote CAN frames (RTR) |
| Cyclic Logging | Optional cyclic logging mode (oldest log file is deleted when SD card is full) |
| Advanced Triggers | Control signal lets you start/stop logging based on custom CAN IDs & data thresholds |
| CAN Heartbeat | Optionally transmit heartbeat CAN frame with device status, storage used & RTC time |
| File Split | Configurable log file split size (by size: 1-512 MB and/or by time period: 0-86400s) |
| Power Safe | 100% power safe data logging - no file corruption when disconnected |
| Unique Device ID | Each device has globally unique ID ensuring unique log file naming |
| Data Encryption | Log files can be encrypted at rest on the SD card for security/GDPR/CCPA (incl. integrity check) |
| WiFi | |
|---|---|
| Transfer Modes | Station mode: Connects to a WiFi access point to transfer data |
| Protocol | HTTP/HTTPS: Stable and secure transfers - ideal for big data telematics |
| Access Points | Add 1-4 WiFi access points. Prioritized order. Condition on signal strength |
| Over-The-Air (OTA) | Configuration & firmware over-the-air (COTA/FOTA). Configurable sync rate. Optionally disable |
| WiFi Heartbeat | If enabled, the CANedge 2 periodically "checks-in" by uploading a small device status file |
| Data Upload State | Optionally disable/enable upload of log files (e.g. via over-the-air configuration) |
| Range | Strong range via external WiFi antenna |
| LAN Standard | IEEE 802.11 b/ g/ n |
| Frequency | 2.412-2.472 MHz (power output of 18.5dBm, 802.11b 11Mbps) |
| Antenna | External (SMA, <2 dBi gain). Can be extended or replaced by e.g. a WiFi rooftop antenna |
| S3 Server Interface | Upload data to your own cloud server (e.g. Amazon, Google, Azure) or self-hosted server (e.g. MinIO) |
| Web Server Interface | Pull data from SD via WiFi (through browser web page or REST API) - no server required |
| WiFi Security | |
|---|---|
| HTTPS | Data & over-the-air updates can be sent via HTTPS (TLS 1.2) for secure transfer |
| WPA/WPA2 | Supports WPA/WPA2 |
| Credential Encryption | WiFi access point & server credentials can be encrypted in the config on the device SD card |
| Signed Firmware | Firmware updates are digitally signed to verify that they are from a trusted source |
| User Policies | Fully customize access rights across CANedge devices and end users through S3 policies |
| Electrical | |
|---|---|
| Via CAN bus | +7V to +32V DC via the Channel 1 DB9 (e.g. via CAN connector power pin) |
| Power Consumption | Extremely low (~1 W) - no risk of battery drainage |
| Protection | Reverse voltage protection on CAN-bus supply |
| Transient voltage event protection on supply lines |
| Mechanical | |
|---|---|
| Enclosure & Weight | Compact aluminium enclosure: 52.5 x 81.4 x 24.5 mm (L x W x H) excl. antenna, 100 grams |
| Antennas | WiFi antenna included |
| Flanges | Flanges with 4 x M3 screw holes (head diameter < 6 mm) - see also the CANedge 'mounting kit' |
| Connector | 2 x Standard D-Sub 9 (DB9) connectors (optional OBD2/J1939/... adapters) |
| Pin-Out | See the product manual for the DB9 connector pin-outs |
| Configurable Power Out | Channel 2 can be configured to supply 5V to external modules (e.g. the CANmod sensor-to-CAN modules) |
| LEDs | Logger status via 5 external LEDs: Power, CH1, CH2, Memory, WiFi |
| Temperature | Operating temperature (parts): -25degC to +70degC |
| IP Rating | IP Rating 40 (optional IP67 enclosure kit available) |
